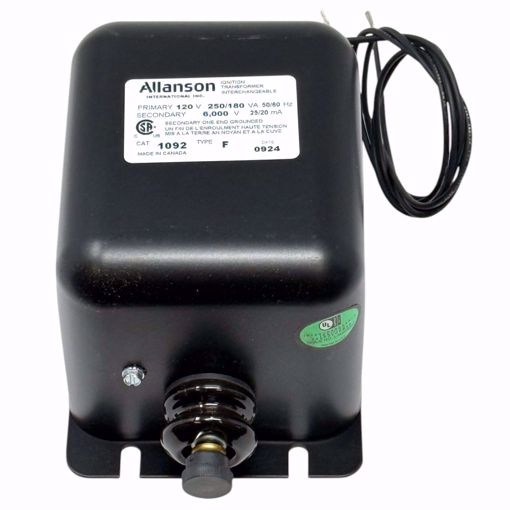

1092-F Allanson Gas Ignition Transformer – 120V Primary, 6000V Secondary, Single Pole

The 1092-F Allanson Gas Ignition Transformer is a high-performance, single-pole ferromagnetic transformer designed for constant-duty gas ignition applications. With a 120V primary input and 6000V secondary output, this transformer provides reliable, consistent ignition power for commercial, residential, and industrial gas burners. Built to burner manufacturer specifications, it runs cooler, quieter, and safer while meeting American and European noise emission standards for EMI and RFI protection.

Functional, durable, and designed for dependable power on all types of gas burners.

Functional Replacement for Allanson 1092-F | Single Pole, 120V to 6000V

🔑 Key Features

✅ Primary Voltage: 120V AC, Input Frequency 50/60Hz
✅ Current: 25/20 mA
✅ Secondary Voltage: 6000V, ideal for reliable gas ignition
✅ Poles: Single Pole, Single Porcelain Design
✅ Grounding: One End Ground
✅ HV Terminal: Thumb Screw for secure connections
✅ High-temperature wire for enhanced durability and safety
✅ Runs cooler and quieter on all types of burners
✅ Designed according to burner manufacturer specifications
✅ Meets American and European EMI/RFI noise emission standards
✅ Dependable, constant-duty power for commercial, residential, and industrial applications

📊 Technical Specifications

⚠️ Common Symptoms Indicating Transformer Replacement

• Burner fails to ignite

• Weak or inconsistent spark

• Excessive heat or noise from transformer

• Visible damage or insulation wear

🛒 Shopping Tips

• Confirm Compatibility: Ensure this transformer matches your burner’s voltage and current requirements.

• Check Application: Suitable for gas ignition in commercial, residential, and industrial burners.

• Proper Installation: Use grounding and HV terminal correctly for safe operation.

• Constant Duty Use: Designed for continuous operation without overheating.

• Noise Compliance: Meets EMI/RFI standards—ideal for sensitive environments.

❓ Frequently Asked Questions (FAQ)

Q1: What type of burners can this transformer be used with?
A: The 1092-F Allanson transformer is compatible with commercial, residential, and industrial gas burners that require a 120V primary and 6000V secondary output.

Q2: Is this a single-pole or dual-pole transformer?
A: This model is a single-pole transformer with a single porcelain design.

Q3: What is the maximum current rating?
A: Rated at 25/20 mA depending on your application.

Q4: How is it grounded?
A: Grounding is provided on one end for proper installation and safety.

Q5: What is the HV terminal type?
A: High-voltage terminal uses a thumb screw for secure and reliable connections.

Q6: Does it meet EMI/RFI standards?
A: Yes, this transformer meets American and European noise emission standards for EMI and RFI protection.

Q7: Can it be used for continuous operation?
A: Yes, it’s designed for constant-duty use without overheating.
