1092-NA ALLANSON Ignition Transformer β 120V Primary, 6000V Secondary | North American Burners

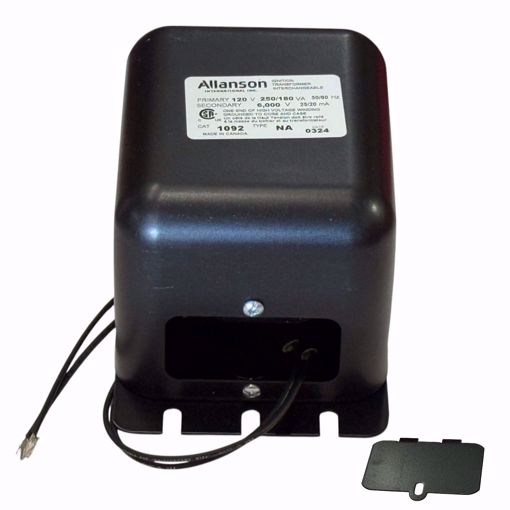

The 1092-NA ALLANSON Ignition Transformer is a high-performance, single-pole ferromagnetic transformer designed for constant-duty gas ignition applications with North American burners. With a 120V primary input and 6000V secondary output, it provides a reliable, consistent ignition source for commercial, residential, and industrial gas burners. Built to burner manufacturer specifications, this transformer runs cooler, quieter, and safer, while meeting American and European EMI/RFI noise emission standards.
Functional, durable, and designed for dependable power on all types of North American gas burners.
π Key Features
β
Primary Voltage: 120V AC, Input Frequency 50/60Hz
β
Current: 25/20 mA
β
Secondary Voltage: 6000V, ideal for reliable gas ignition
β
Poles: Single Pole, Single Porcelain Design
β
Grounding: One End Ground
β
HV Terminal: Rajah Connector for secure high-voltage connection
β
Junction Box: Internal for easy wiring and protection
β
High-temperature wire for enhanced durability and safety
β
Runs cooler and quieter on all types of burners
β
Designed according to burner manufacturer specifications
β
Meets American and European EMI/RFI noise emission standards
β
Dependable, constant-duty power for commercial, residential, and industrial applications
π Technical Specifications
Specification | Details |
Model |
1092-NA |
Application |
Gas Ignition |
Burner Manufacturer |
North American |
Burner Type |
North American |
Input Voltage |
120V AC |
Current |
25/20 mA |
Grounding |
One End Ground |
Secondary Voltage |
6000V |
Input Frequency |
50/60Hz |
HV Terminal |
Rajah Connector |
Junction Box |
Internal |
Poles |
Single Pole |
Wire Type |
High-temperature wire |
Compliance |
EMI/RFI noise emission standards |
β οΈ Common Symptoms Indicating Transformer Replacement
-
Burner fails to ignite or produces weak spark
-
Inconsistent ignition performance
-
Excessive heat or unusual noise from transformer
-
Visible damage or insulation wear
π Shopping Tips
-
Confirm Compatibility: Ensure your burner is North American and matches the transformerβs 120V primary and 6000V secondary output.
-
Check Application: Suitable for commercial, residential, and industrial gas burners.
-
Proper Installation: Use grounding and Rajah HV terminal correctly for safe operation.
-
Constant Duty: Designed for continuous operation without overheating.
-
Noise Compliance: Meets EMI/RFI standards for safe and quiet operation.
β Frequently Asked Questions (FAQ)
Q1: What type of burners can this transformer be used with?
A: Designed specifically for North American commercial, residential, and industrial gas burners.
Q2: Is this a single-pole or dual-pole transformer?
A: This model is a single-pole transformer with a single porcelain design.
Q3: What is the input and output voltage?
A: Input: 120V AC, Output: 6000V.
Q4: How is it grounded?
A: Grounding is provided on one end for proper installation and safety.
Q5: What is the HV terminal type?
A: Uses a Rajah Connector for secure, reliable high-voltage connections.
Q6: Is there a junction box?
A: Yes, it has an internal junction box for wiring protection and easier installation.
Q7: Can it be used for constant-duty operation?
A: Yes, itβs designed for continuous operation without overheating.
Q8: Does it meet EMI/RFI standards?
A: Yes, compliant with American and European noise emission standards.
