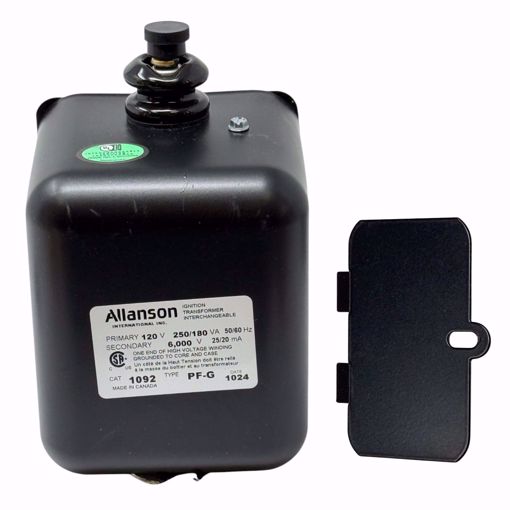

1092-PF-G Allanson PowerFlame 6,000 Volt Single-Pole Ignition Transformer
The Allanson 1092-PF-G Ignition Transformer is a high-quality 6,000V single-pole transformer designed specifically for Power Flame gas burners. Engineered for constant-duty applications, it delivers reliable ignition while running cooler, quieter, and safer than generic alternatives. Built to meet OEM specifications, this transformer is ideal for residential, commercial, and industrial gas systems.
✅ Key Features
-
High voltage output: 6,000V for consistent spark ignition
-
Single-pole design – constant-duty operation
-
Input Voltage: 120V AC, 25/20 mA
-
Input Frequency: 50/60 Hz
-
Thumb screw HV terminal for secure connections
-
Mid-point grounding not required – one end grounded
-
Internal junction box – protects wiring and improves safety
-
High-temperature wire for cooler, safer operation
-
Single porcelain construction – durable and long-lasting
-
Mounting: 1/4-20 x 1″ studs, primary with three wires, one ground wire
-
Complies with American & European EMI/RFI noise standards
📊 Technical Specifications
| Specification | Details |
|---|
| Manufacturer |
Allanson |
| Part Number |
1092-PF-G |
| Application |
Gas Burners |
| Burner Manufacturer |
Power Flame |
| Burner Type |
Power Flame |
| Input Voltage |
120V AC |
| Input Current |
25/20 mA |
| Secondary Voltage |
6,000V |
| Poles |
Single |
| HV Terminal |
Thumb Screw |
| Junction Box |
Internal |
| Mounting |
1/4-20 x 1″ studs, primary with 3 wires, 1 ground wire |
| Compliance |
Meets American & European EMI/RFI standards |
| Features |
High-temperature wire, single porcelain, constant-duty |
⚡ Common Problems Solved
❌ Burners failing to ignite reliably
❌ Noisy or overheating transformers
❌ Premature failure from low-quality or non-OEM transformers
❌ Electrical interference affecting nearby systems
❌ Inconsistent spark causing flame detection or misfire issues
🛒 Shopping Tips
✅ Check Burner Compatibility – Designed specifically for Power Flame gas burners. Confirm your burner type before purchasing.
✅ Verify Replacement Part Numbers – Use as a replacement for OEM Power Flame ignition transformers requiring 6,000V single-pole output.
✅ Ensure Proper Voltage & Mounting – Input: 120V AC; Mounting studs 1/4-20 x 1″ with 3 wires plus 1 ground.
✅ Safety First – Single-pole design with high-temperature wire and internal junction box ensures safe installation and operation.
✅ OEM Quality Matters – High-temperature wire and single porcelain construction ensure durability, quiet operation, and reliable ignition.
❓ Frequently Asked Questions (FAQ)
Q: What burners are compatible with this transformer?
✅ Power Flame gas burners.
Q: What is the voltage output?
✅ 6,000 volts for consistent spark ignition.
Q: Is this a single or double-pole transformer?
✅ Single-pole, constant-duty design.
Q: Does it meet EMI/RFI standards?
✅ Yes, complies with American and European noise standards.
Q: How is it mounted?
✅ 1/4-20 x 1″ studs, primary with three wires and one ground wire.
