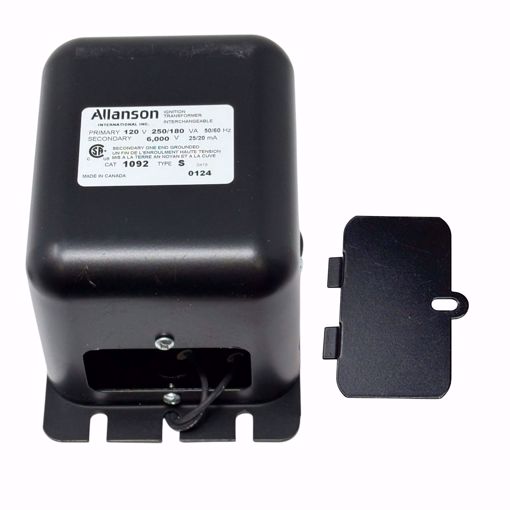

1092-S ALLANSON GORDON PIATT 6000 VOLT IGNITION TRANSFORMER

Manufacturer: Allanson
SKU: ALLANSON:1092-S
Product Availability: 19
$87.96
This product must be purchased in increments of 1
i h

1092-S Allanson Gordon Piatt 6000 Volt Ignition Transformer

The Allanson 1092-S Ignition Transformer is a high-performance ignition transformer designed for Gordon Piatt gas burners. With a 6,000 volts output, it ensures reliable, consistent spark ignition, providing safe and efficient operation for residential and commercial gas burners. Engineered to meet burner manufacturer specifications, this transformer delivers dependable power, quiet operation, and long service life.


Key Features

  • High voltage output: 6,000V for consistent ignition

  • Input: 120V, 25/20 mA, 50/60 Hz

  • Single porcelain design – durable and reliable

  • Internal junction box with thumb screw HV terminal for secure connections

  • Designed with high-temperature wire for cooler, safer operation

  • Meets American & European EMI and RFI noise standards

  • Quiet operation – runs cooler and reduces noise on all burner types

  • One-end grounded for safety

  • Built to OEM specifications for reliability


📊 Technical Specifications

SpecificationDetails
Manufacturer Allanson
Part Number 1092-S
Application Gas Burners
Burner Type Gordon Piatt
Input Voltage 120V AC
Input Current 25/20 mA
Secondary Voltage 6,000V
Frequency 50/60 Hz
Poles Single
HV Terminal Thumb Screw
Junction Box Internal
Grounding One End Ground
Compliance Meets American & European EMI/RFI standards

Common Problems Solved

❌ Burners failing to ignite reliably
❌ Inconsistent spark causing misfires
❌ Overheating or excessive noise from older transformers
❌ EMI or RFI interference affecting other equipment
❌ Premature failure from non-OEM or low-quality transformers


🛒 Shopping Tips

Confirm Burner Compatibility – Designed specifically for Gordon Piatt gas burners. Check your burner model before purchase.

Verify Replacement Part Numbers – Replaces Webster 612-6A020, 612-6A0202, 6126A044, 612-6A072, Dungs 48996, Dongan A06-SA6, Gordon Piatt 324201-0020, Grainger 23M558. Match your old part number for correct replacement.

Check Voltage Requirements – Input voltage is 120V AC, 25/20 mA. Ensure your system supports this rating.

Installation Orientation – Includes internal junction box and thumb screw HV terminal. Plan for secure mounting and wiring access.

Prioritize Safety and Compliance – One-end grounded and meets EMI/RFI standards. Follow manufacturer installation instructions.

Consider Durability – High-temperature wire and porcelain design make this transformer long-lasting, quieter, and cooler running than generic alternatives.

OEM Quality Matters – For reliable ignition and burner performance, choose OEM or equivalent quality transformers.


Frequently Asked Questions (FAQ)

Q: What burners is this compatible with?
✅ Designed for Gordon Piatt gas burners.

Q: What parts does it replace?
✅ Replaces Webster 612-6A020, 612-6A0202, 6126A044, 612-6A072, Dungs 48996, Dongan A06-SA6, Gordon Piatt 324201-0020, and Grainger 23M558.

Q: Is this a high-voltage transformer?
✅ Yes, it provides 6,000 volts output for reliable spark ignition.

Q: Does it meet safety and noise standards?
✅ Yes, it meets American and European EMI/RFI noise emission standards.

Q: Is it durable?
✅ Yes, with a single porcelain design and high-temperature wire, it runs cooler, quieter, and lasts longer than standard transformers.

Products specifications
Voltage 120 Volt AC
Secondary Voltage 6,000 Volts
Hertz 50/60 Hz
Burner Manufacturer GORDON PIATT
