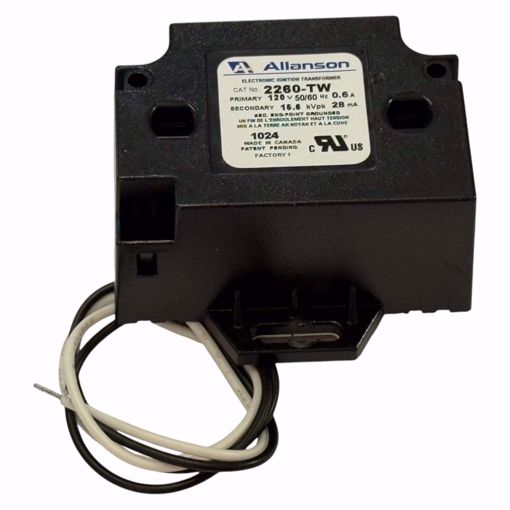

2260-TW ALLANSON ELECTRONIC IGNITOR PRIMARY VOLTAGE 120 VOLT 50/60Hz
- Application: GAS
- Input Voltage : 120V
- Grounding: One End Ground
- Current: 28mA
- Primary Voltage: 120 Volt
- Secondary Voltage: 15.6 kVpk
- Input Frequency: 50/60Hz
- Hv Terminal: Rajah Connector
Mounting tabs with traditional bottom exit primary pigtails | 3 way mounting
Features:
- Easy conversion with mounting tabs and primary wire connector
- No clumsy connections
- Extended life expectancy
- Energy efficient
- Meets EMI/RFI requirements
- Quick and easy to install
- Optional secondary connector kit available
- Storage Temperature: -40 to 176 F (-40°C to 80°C)
- Operating Temperature: -22 to 104 F (-30°C to 40°C)
- Operating Relative Humidity: 90%
- Loading Air Gap: 1/16″ – 3/16″
Allanson’s ignitors are designed for constant duty and provide the most reliable ignition source for commercial, residential, and industrial applications.
