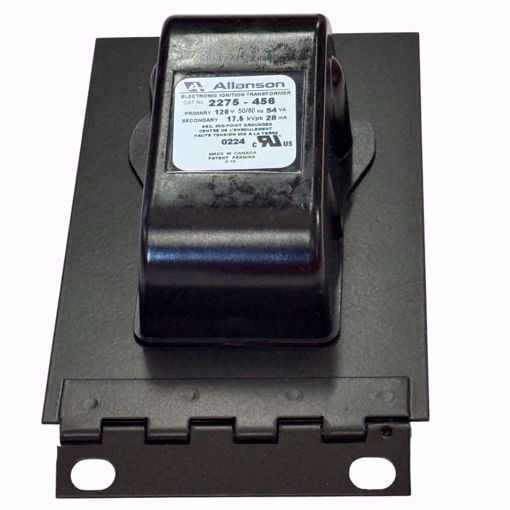

2275-456 ALLANSON AERO IGNITION TRANSFORMER
- Application OIL
- Burner Manufacturer AERO
- Input Voltage 120V
- Grounding Mid Point Ground
- Current 28mA
- Secondary Voltage 17.5 kVpk
- Input Frequency 50/60Hz
- Hv Terminal Zinc Plated Button
- Hinge Location End Hinge
- Poles Double
Features:
- Eliminates need for other mounting plates helping to minimize inventory requirements
- History of excellent operation under brownout conditions
- Quick & easy to change
- Energy efficient
- Low operating temperature
- Ships complete with required hardware
- Meets American and European noise emission standards offering superior EMI and RFI protection
- Storage Temperature: -40 to 176 F (-40°C to 80°C)
- Operating Temperature: -22 to 104 F (-30°C to 40°C)
- Operating Relative Humidity: 90%
- Loading Air Gap: 1/16″ – 3/16″
- Dimensions 4.06″ x 4.92″ x 2.91″
Allanson’s ignitors are designed for constant duty and provide the most reliable ignition source for commercial, residential, and industrial applications.
