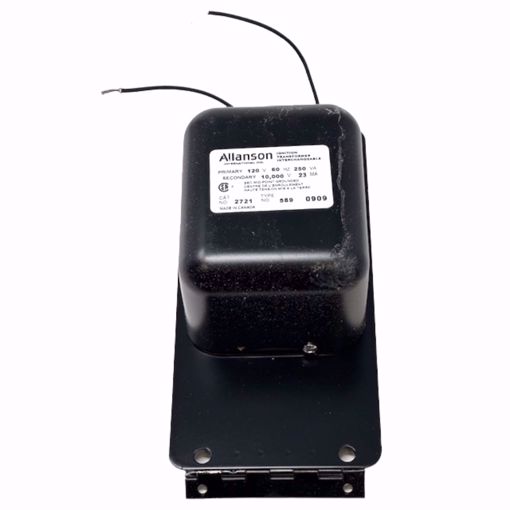

2721-589 ALLANSON Ignition Transformer β 120V Primary, 10,000V Secondary | For Grimsby Burners
The 2721-589 ALLANSON Ignition Transformer is a high-performance, constant-duty transformer designed to deliver reliable ignition power for commercial and industrial gas burners, including Grimsby burner systems. With a 120V primary input and 10,000V secondary output, this transformer ensures consistent and dependable spark performance. Built to burner manufacturer specifications, it runs cooler, quieter, and safer, while meeting American and European EMI/RFI noise emission standards.
Functional, durable, and designed for safe, long-term operation on all types of gas burners.
π Key Features
β
Primary Voltage: 120V AC, Input Frequency 60Hz
β
Secondary Voltage: 10,000V RMS for reliable gas ignition
β
Primary Power Rating: 250 VA
β
Secondary Short Circuit Current: 23 mA
β
Single porcelain design for durability and safety
β
High-temperature wire for enhanced performance and longevity
β
Runs cooler and quieter on all types of burners
β
Designed according to burner manufacturer specifications
β
Meets American and European EMI/RFI noise emission standards
β
Dependable, constant-duty power for commercial and industrial applications
π Technical Specifications
Specification | Details |
Model |
2721-589 |
Application |
Gas Ignition |
Input Supply Voltage (V) |
120 |
Input Supply Frequency (Hz) |
60 |
Primary Voltage β Amperes (VA) |
250 |
Secondary Voltage (RMS) |
10,000 |
Secondary Short Circuit Current |
23 mA |
Poles / Design |
Single porcelain |
Wire Type |
High-temperature wire |
Compliance |
EMI/RFI noise emission standards |
β οΈ Common Symptoms Indicating Transformer Replacement
-
Burner fails to ignite or weak spark
-
Inconsistent ignition performance
-
Overheating or unusual noise during operation
-
Visible damage or insulation wear
π Shopping Tips
-
Confirm Compatibility: Ensure your burner is compatible with a 120V primary and 10,000V secondary transformer.
-
Check Application: Suitable for commercial and industrial Grimsby burners.
-
Proper Installation: Use correct grounding and follow safety procedures for high-voltage equipment.
-
Constant Duty: Designed for continuous operation without overheating.
-
Noise Compliance: Meets EMI/RFI standards, ideal for sensitive environments.
β Frequently Asked Questions (FAQ)
Q1: What type of burners can this transformer be used with?
A: Designed for commercial and industrial gas burners, including Grimsby systems.
Q2: What is the input and output voltage?
A: Input: 120V AC, Output: 10,000V RMS.
Q3: What is the maximum current rating?
A: Secondary short circuit current is 23 mA, primary rating 250 VA.
Q4: Is this suitable for constant-duty operation?
A: Yes, itβs designed for continuous operation without overheating.
Q5: Does it meet EMI/RFI standards?
A: Yes, compliant with American and European noise emission standards for EMI and RFI protection.
Q6: What design features improve durability?
A: Single porcelain design and high-temperature wire provide enhanced safety, durability, and long service life.
