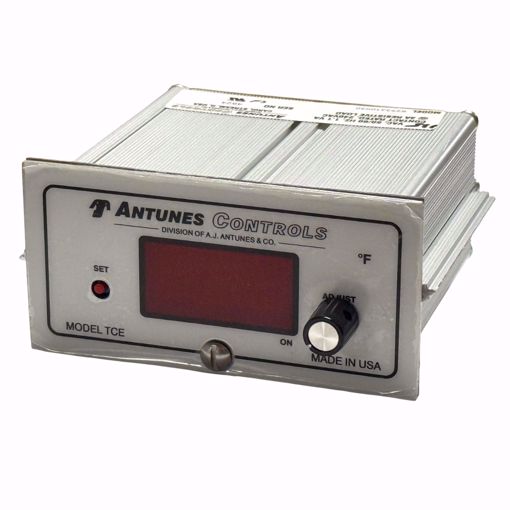

Antunes TCE-J Digital Temperature Controller (8253310030) – 50–940°F, J-Type Thermocouple, 1/8 DIN Panel Mount
🧭 Product Overview
The Antunes TCE-J Digital Temperature Controller (Part #8253310030) is a precision electronic control designed for commercial cooking and industrial heating applications.
It utilizes a Type J thermocouple and measures temperatures from 50°F to 940°F, providing reliable On/Off control via a 3-digit LED display.
Housed in a compact 1/8 DIN anodized aluminum panel-mount case, the TCE-J features external or recessed screw adjustments, screw terminal connections, and low-power contact operation rated at 1.1 VA at 240 VAC.
With ±1% full-scale accuracy and a typical hysteresis of 1–2°F (factory preset up to 10°F), the TCE-J delivers precision, reliability, and cost-effective control for a variety of heating systems.
✅ Key Features
-
✅ Accurate 50–940°F temperature range
-
✅ Type J thermocouple sensor for precise readings
-
✅ 3-digit LED display for easy temperature monitoring
-
✅ External knob or recessed screw drive for setpoint adjustment
-
✅ 3A relay output (resistive load) for On/Off control
-
✅ Contact rated 240 VAC @ 50/60 Hz, 1.1 VA
-
✅ Accuracy: ±1% full scale ±1 LSD
-
✅ Hysteresis: 1–2°F typical, factory preset up to 10°F
-
✅ 1/8 DIN panel mount in anodized aluminum case
-
✅ Screw terminal connections for simple installation
-
✅ Compact, cost-effective electronic control, modifiable for custom applications
📊 Technical Specifications
| Specification | Detail |
|---|
| Brand |
Antunes |
| Model / Part Number |
TCE-J (8253310030) |
| Temperature Range |
50–940°F |
| Thermocouple Type |
J |
| Operating Ambient Temp |
-30 to 140°F |
| Accuracy |
±1% Full Scale ±1 LSD |
| Hysteresis |
1–2°F typical (factory preset up to 10°F) |
| Display |
3-digit LED |
| Output |
3A Relay (resistive load), On/Off control |
| Contact Rating |
240 VAC @ 50/60Hz, 1.1 VA |
| Mounting |
1/8 DIN Panel Mount |
| Case Material |
Anodized Aluminum |
| Connection Type |
Screw Terminals |
| Set Point Adjustment |
External Knob or Recessed Screw Drive |
⚠️ Symptoms / When to Replace
-
⚠️ Inaccurate or fluctuating temperature readings
-
⚠️ LED display fails, flickers, or is unreadable
-
⚠️ Relay output fails to engage equipment
-
⚠️ Difficulty adjusting the setpoint or knob is stuck
-
⚠️ Corrosion or damaged wiring at screw terminals
❓ Frequently Asked Questions (FAQ)
Q: What type of thermocouple is used?
A: Type J thermocouple, suitable for commercial and industrial heating applications.
Q: Can the hysteresis be adjusted?
A: Yes, 1–2°F typical, but can be factory preset up to 10°F.
Q: What is the LED display type?
A: 3-digit LED display for easy real-time monitoring.
Q: Can this unit operate on multiple voltages?
A: Contact is rated for 240 VAC @ 50/60 Hz, 1.1 VA; power requirements depend on system wiring.
Q: How is it mounted?
A: 1/8 DIN panel mount in anodized aluminum case.
🛒 Shopping Tips
-
✅ Confirm part number 8253310030 matches your system requirements.
-
✅ Verify temperature range (50–940°F) meets your application.
-
✅ Ensure 3A relay output suits your heating or cooking equipment.
-
✅ Compact 1/8 DIN size allows easy panel replacement or retrofit.
-
✅ Easy installation with screw terminal connections.
