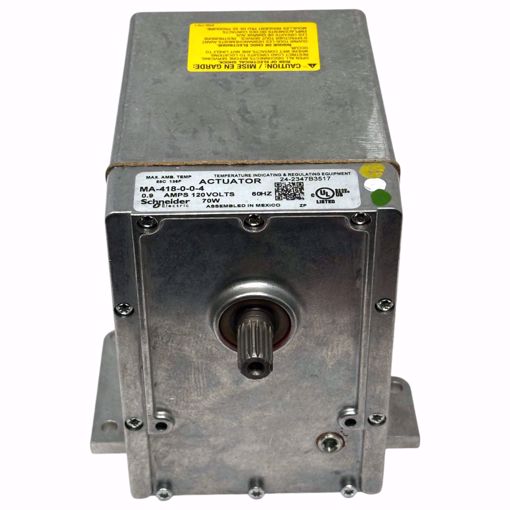

BARBER COLMAN MA-418 2 POSITION 120V ROTARY ACTUATOR

Manufacturer: Barber Colman

- 120V - 60 Hz - 0.9 Amps - 70 Watts Running - 25 Watts Holding - 108 VA Running - 42 VA Holding - 60 (6.8) Rated Torque lb-in (N-m) - 20 No Load Timing in Seconds at 75 F - Mounting Output Shaft Must be Horizontal - Shaft Rotation CW 170 Degrees when power is applied - Operating Temperature -40 to 136 F Features - Rugged die cast aluminum with two 1/2” conduit openings - Oil immersed motor and gear train - Spring Return For two-position operation of dampers, valves, and other equipment which require the return to normal position upon power interruption.

SKU: BARBER COLMAN:MA-418

Product Availability: 77

PRICE BREAKS - The more you buy, the more you save

Quantity

Price

$474.99

$449.99

$499.99

This product must be purchased in increments of 1

Qty:

i h

- 120V
- 60 Hz
- 0.9 Amps
- 70 Watts Running
- 25 Watts Holding
- 108 VA Running
- 42 VA Holding
- 60 (6.8) Rated Torque lb-in (N-m)
- 20 No Load Timing in Seconds at 75 F
- Mounting Output Shaft Must be Horizontal
- Shaft Rotation CW 170 Degrees when power is applied
- Operating Temperature -40 to 136 F

Features
- Rugged die cast aluminum with two 1/2” conduit openings
- Oil immersed motor and gear train
- Spring Return

For two-position operation of dampers, valves, and other equipment which require the return to normal position upon power interruption.

Products specifications

Manufacturer	Barber Colman
