5940 Beckett Electrode Kit for AFG Burners with Type "M" Heads (Up to 9" Blast Tubes)

The Beckett 5940 Electrode Kit is designed for AFG burners equipped with Type "M" heads (MB, MD, M1) and blast tubes up to 9 inches. This kit ensures proper ignition performance and reliable burner operation.

⚠️ Note: Not for use with AFG burners using F Series heads.

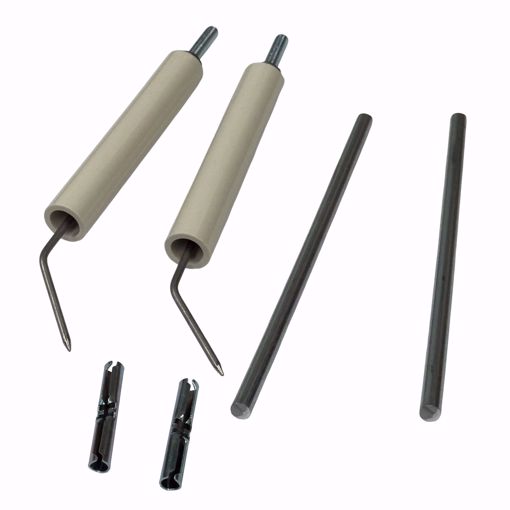

Kit Includes

• 2 × Electrode Assemblies (for Type "M" heads: MB, MD, M1)

• Mounting hardware and components for proper installation

⚠️ Important Note

The Beckett T501 gauge is not included with the 5940 Electrode Kit and must be purchased separately, as Beckett does not provide this gauge as part of the kit.

The T501 gauge is essential for:

• Setting the electrode gap and position

• Determining the correct oil nozzle distance from the burner head on AF, AFG, AFII, NX, SF, SM, and SR burners

• Checking firing pin length and motor-to-blower wheel gap on AFII burners

Common Symptoms of Worn Electrodes

• Burner fails to ignite or delayed ignition

• Weak or inconsistent flame signal

• Visible cracks or wear on electrode insulators

• Frequent lockouts or misfires

• Increased fuel consumption due to incomplete combustion

💡 Quick Shopper Tips

• Use only with AFG burners that have Type "M" heads (MB, MD, M1)

• Not compatible with F Series heads

• Always verify blast tube length before purchase (must be 9" or shorter)

• Keep a T501 gauge on hand for precise installation and adjustment

❓ Frequently Asked Questions (FAQ)

Q: Will this kit fit my AFG burner with an F head?
A: No, the 5940 kit is not compatible with AFG burners using F Series heads.

Q: Do I need the T501 gauge for installation?
A: Yes, the T501 gauge is strongly recommended for accurate electrode gap and position settings.

Q: How often should I replace my electrodes?
A: Typically during routine burner maintenance or when symptoms like delayed ignition, cracks, or weak flame signals appear.

Q: Is this kit only for AFG burners?
A: Yes, it is specifically designed for AFG burners with Type M heads (MB, MD, M1) and up to 9" blast tubes.
