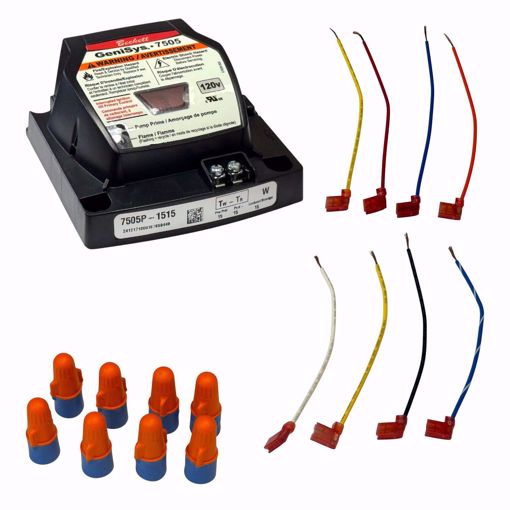

BECKETT GENISYS ADVANCED OIL BURNER CONTROL

Electrical Ratings Inputs - Voltage: 102 to 132 Vac - Current: 150 mA plus burner motor, igniter, and valve loads - Frequency: 60 Hz Outputs - Motor: 120 Vac, 10 full load amps (FLA*), 60 locked rotor amps (LRA) - Note – Reduce motor FLA rating by igniter current - Igniter: 120 Vac, 3 A @ 0.7 PF min - Solenoid Valve: 120 Vac, 1 A @ 0.7 PF min - Thermostat Anticipator Current: 0.1 A - Thermostat Voltage: 24 Vac Application Ratings - Oil Burner Input: < 20gph - Control Programming: UL372 Group 2 Environmental Ratings - Storage & Operating Ambient Temperature: -40°F to +150°F (-40°C to +65°C) - Moisture: 5 to 95% RH, non-condensing and non-crystallizin Features & Benefits - Water Resistant - Thermostat and boiler control compatible - Customizable pre-time and post-time - Three status lights for system monitoring and diagnostics - Welded relay protection with redundant motor relays - Limited reset and limited recycle - Sleek, modern design - Technician Pump Prime mode - 5-Year Warranty - 7505a replaces Honeywell R8184G - 7505b replaces Honeywell R7184B - Two communication ports for adding alarm contacts, programming display, and/or future Replaces 7457, 7457U, R7184P1064 7505P-1515, 7505P1515 The Beckett GeniSys 7505 Oil Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys 7505 is used with the GeniSys CAD Cell Flame Detector Kit 7006U to control the oil burner’s motor, igniter, and optional solenoid valve. It has front-mounted, 24 VAC thermostat terminals compatible with both mechanical and many power stealing thermostats. The control operates the burner with interrupted ignition with a 15 second lockout time.
