PRIMARY CONTROL A/C READY

The Beckett GeniSys 7505 Oil Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys 7505 is used with the GeniSys CAD Cell Flame Detector Kit 7006U to control the oil burner’s motor, igniter, and optional solenoid valve. It has front-mounted, 24 VAC thermostat terminals compatible with both mechanical and many power stealing thermostats. The control operates the burner with interrupted ignition with a 15 second lockout time.

With the GeniSys 52082 Contractor Tool or the new BeckettLink Pro Contractor Tool 7652, the control can be programmed with pre-purge and post-purge timings. For diagnostics, the GeniSys 7505 stores the last 15 cycles.

For high moisture environments, a potted version is offered in the Beckett GeniSys 7575 Oil Burner Control.

Features & Benefits
- Water Resistant
- Thermostat and boiler control compatible
- Customizable pre-time and post-time
- Three status lights for system monitoring and diagnostics
- Welded relay protection with redundant motor relays
- Limited reset and limited recycle
- Sleek, modern design
- Technician Pump Prime mode
- Two communication ports for adding alarm contacts, programming display, and/or future

Electrical Ratings
Inputs
- Voltage: 102 to 132 Vac
- Current: 150 mA plus burner motor, igniter, and valve loads
- Frequency: 60 Hz

Outputs
- Motor: 120 Vac, 10 full load amps (FLA*), 60 locked rotor amps (LRA)
- Note – Reduce motor FLA rating by igniter current
- Igniter: 120 Vac, 3 A @ 0.7 PF min
- Solenoid Valve: 120 Vac, 1 A @ 0.7 PF min
- Thermostat Anticipator Current: 0.1 A
- Thermostat Voltage: 24 Vac

Application Ratings
- Oil Burner Input: < 20gph
- Control Programming: UL372 Group 2

Environmental Ratings
- Storage & Operating Ambient Temperature: -40°F to +150°F (-40°C to +65°C)
- Moisture: 5 to 95% RH, non-condensing and non-crystallizing

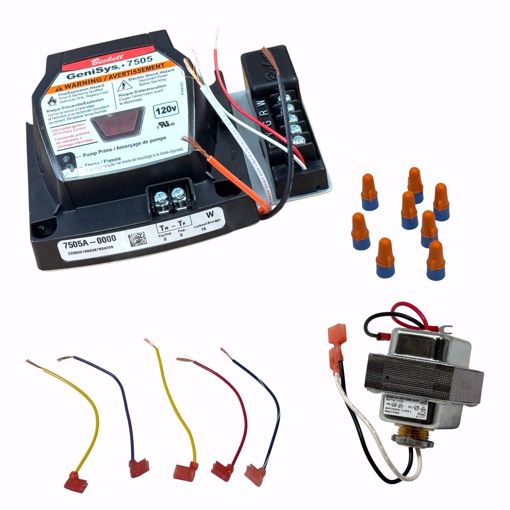

Beckett 7520U 7505A0000U Primary Control And A/C Ready Kit Package Kit Includes: Beckett 7505A0000U Genisys Control Beckett 51950U A/C Ready Kit With 21905U Transformer And 51970U Base Small Parts Package With Wiring And Accessories Beckett 7505A0000U Genisys Control 120V 15 Second Lockout Lockout Time 15 Seconds Electrical Ratings Inputs Voltage: 102 to 132 Vac Current: 150 mA plus burner motor, igniter, and valve loads Frequency: 60 Hz Outputs Motor: 120 Vac, 10 full load amps (FLA*), 60 locked rotor amps (LRA) Note – Reduce motor FLA rating by igniter current Igniter: 120 Vac, 3 A @ 0.7 PF min Solenoid Valve: 120 Vac, 1 A @ 0.7 PF min Thermostat Anticipator Current: 0.1 A (If applicable) Thermostat Voltage: 24 Vac (If applicable) Replaces Honeywell R7184A1075 When Used With A/C Ready Kit, Beckett 7190U Same As Utica 27260, Dunkirk 27260
