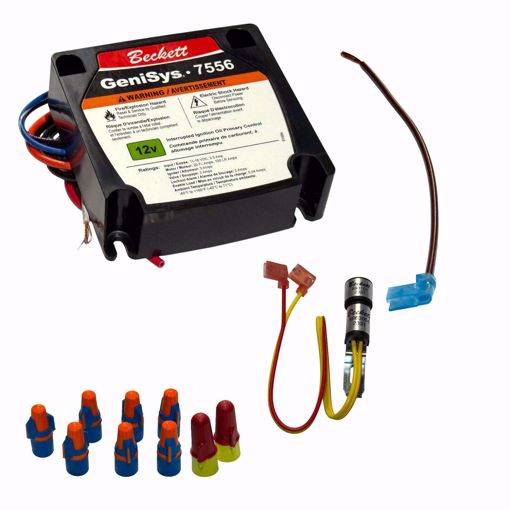

7556A0000U BECKETT GENISYS 12V PRIMARY CONTROL

Manufacturer: Beckett

Beckett 7556A0000U GeniSys 7556A 12VDC Oil Burner Control Electrical Ratings Inputs - Voltage: 12 Vdc nominal (11 to 16 Vdc) - Current: 160 mA plus burner motor, igniter, and valve loads Outputs - Motor: 12 Vdc, 20 full load amps (FLA), 100 locked rotor amps (LRA) - Igniter: 12 Vdc, 5 A - Solenoid Valve: 12 Vdc, 2 A - Lockout Alarm: 12 Vdc, 2 A Environmental Ratings - Storage & Operating Ambient Temperature: -40°F to +160°F (-40°C to +71°C) - Moisture: 5 to 95% RH, condensing Lockout Time 15 Sec Includes Beckett Small Parts Package 5194801 The Beckett GeniSy 12 V Advanced Burner Control is a 12 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys 12 V is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It can provide interrupted or intermittent duty ignition, and it has a 15 second lockout time. Beckett 7556A0000U GeniSys 7556A 12VDC Oil Burner Control 15 Second Lockout

SKU: BECKETT:7556A0000U

Product Availability: 3

$234.99

This product must be purchased in increments of 1

Qty:

i h

Beckett 7556A0000U GeniSys 7556A 12VDC Oil Burner Control

Electrical Ratings
Inputs
- Voltage: 12 Vdc nominal (11 to 16 Vdc)
- Current: 160 mA plus burner motor, igniter, and valve loads

Outputs
- Motor: 12 Vdc, 20 full load amps (FLA), 100 locked rotor amps (LRA)
- Igniter: 12 Vdc, 5 A
- Solenoid Valve: 12 Vdc, 2 A
- Lockout Alarm: 12 Vdc, 2 A

Environmental Ratings
- Storage & Operating Ambient Temperature: -40°F to +160°F (-40°C to +71°C)
- Moisture: 5 to 95% RH, condensing

Lockout Time 15 Sec

Includes Beckett Small Parts Package 5194801

The Beckett GeniSy 12 V Advanced Burner Control is a 12 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys 12 V is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It can provide interrupted or intermittent duty ignition, and it has a 15 second lockout time. Beckett 7556A0000U GeniSys 7556A 12VDC Oil Burner Control 15 Second Lockout
