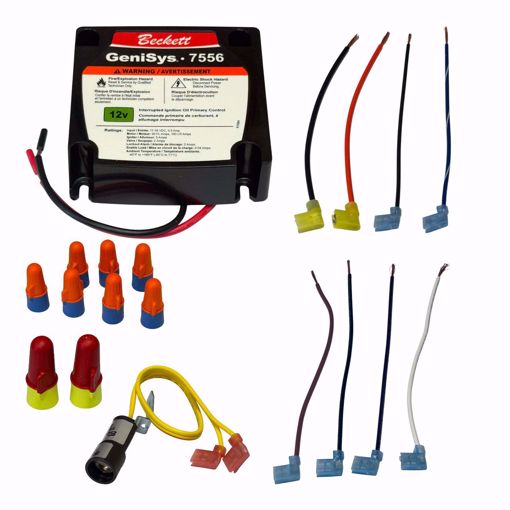

7556P1530U BECKETT 12V OIL BURNER CONTROL

7556P1530U BECKETT 12V OIL BURNER CONTROL Electrical Ratings Inputs - Voltage: 12 Vdc nominal (11 to 16 Vdc) - Current: 160 mA plus burner motor, igniter, and valve loads Outputs - Motor: 12 Vdc, 20 full load amps (FLA), 100 locked rotor amps (LRA) - Igniter: 12 Vdc, 5 A - Solenoid Valve: 12 Vdc, 2 A - Lockout Alarm: 12 Vdc, 2 A Environmental Ratings - Storage & Operating Ambient Temperature: -40°F to +160°F (-40°C to +71°C) - Moisture: 5 to 95% RH, condensing Features & Benefits - Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat - Valve-on delay / motor-off delay — field-programmable with Beckett GeniSys Contractor Tool - Epoxy potted for moisture resistance - Welded relay protection with redundant motor relays - High ambient temperature rating - Alarm output enables visual or audio indication of flame failure and lock out condition - Interrupted ignition - Relight function - Fused protection - 15 second lockout time - Communication port - 15 sec Lockout Time - 15 sec Valve-On Delay Time - 30 sec Motor-Off Delay Time Also Includes Beckett Part Number 5194801 Small Part Package The Beckett GeniSys 7556 Oil Burner Control is a potted (for high moisture environments) 12 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys 7556 is used with the GeniSys CAD Cell Flame Detector Kit 7006U to control the oil burner’s motor, igniter, and optional solenoid valve. The control operates the burner with interrupted ignition with a 15 second lockout time. With the GeniSys Contractor Tool 52082, the control can be programmed with pre-purge and post-purge timings. For diagnostics, the GeniSys 7556 stores the last 15 cycles. The DC GeniSys control is also offered in a 24 VDC version as the Beckett GeniSys 7559 24V Oil Burner Control.
