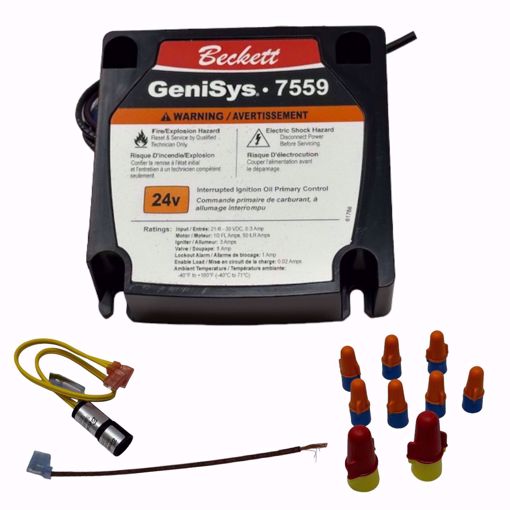

⚡ 7559A0000U BECKETT GeniSys Primary Control – 24V Oil Burner Safety Control
Advanced Primary Safety Control for Oil Burners in Heavy-Duty Equipment
The Beckett GeniSys 7559A0000U is a 24 VDC primary safety control designed to operate oil burners in high-moisture and high-demand environments. Engineered for use on pressure washers, road stripers, crack sealers, hot patchers, asphalt distributors, and similar equipment, this epoxy-potted control manages the burner motor, igniter, and optional solenoid valve with interrupted ignition and a 15-second lockout for enhanced safety.
Compatible with the GeniSys CAD Cell Flame Detector Kit 7006U, the 7559A0000U also supports diagnostics and programmable pre-purge and post-purge timings via the GeniSys Contractor Tool 52082, storing up to 15 previous burner cycles.
✅ Key Features
-
✅ 24 VDC Primary Safety Control – Reliable control of oil burner motor, igniter, and optional solenoid valve.
-
✅ Epoxy-Potted Design – Provides moisture resistance for harsh environments.
-
✅ Interrupted Ignition – Ensures safe burner operation with 15-second lockout.
-
✅ Programmable Pre- and Post-Purge – Optimizes chamber cooling and system efficiency.
-
✅ Diagnostic Memory – Stores last 15 burner cycles for troubleshooting.
-
✅ High Ambient Temperature Rating – Operates from -40°F to 160°F.
-
✅ Alarm Output – Enables visual or audio indication of flame failure or lockout.
-
✅ Welded Relay Protection – Redundant motor relays enhance reliability.
-
✅ Fused Protection – Guards motor, igniter, valve, and control circuits.
-
✅ Relight Function – Automatic attempt to reestablish flame if lockout occurs.
📊 Specifications
| Specification | Detail |
|---|
| Manufacturer |
Beckett |
| Part Number |
7559A0000U |
| Type |
GeniSys 24 VDC Primary Safety Control |
| Input Voltage |
21.6–30 VDC, 0.3 Amps |
| Motor Output |
10 FL Amps, 50 LR Amps |
| Igniter Output |
3 Amps |
| Valve Output |
1 Amp |
| Lockout Alarm Output |
1 Amp |
| Enable Load Output |
0.02 Amps |
| Lockout Time |
15 seconds |
| Ambient Temperature Range |
-40°F to 160°F |
| Ignition Type |
Interrupted / Intermittent Duty |
| Flame Sensor Compatibility |
GeniSys CAD Cell Kit 7006U |
| Programming Tool |
GeniSys Contractor Tool 52082 |
| Cycle Memory |
Stores last 15 burner cycles |
⚠️ Common Symptoms When Replacement Is Needed
-
Burner fails to start or ignite
-
Frequent flame failure lockouts
-
Motor or igniter does not respond to control signals
-
Alarm output triggers repeatedly
-
Erratic burner operation due to moisture or environmental exposure
❓ FAQ
Q: What equipment is the 7559A0000U used on?
A: It is ideal for pressure washers, road stripers, crack sealers, hot patchers, asphalt distributors, and similar oil-fired equipment.
Q: Can it operate in high-moisture environments?
A: Yes — the epoxy-potted housing provides excellent moisture resistance.
Q: What ignition types does it support?
A: The control provides interrupted or intermittent duty ignition with a 15-second lockout time.
Q: Can I program pre-purge and post-purge timing?
A: Yes — using the GeniSys Contractor Tool 52082, you can program both pre- and post-purge for optimized burner operation.
Q: How does the diagnostic memory work?
A: The control stores the last 15 cycles, making troubleshooting and performance monitoring easier.
🛒 Shopping Tips
-
Pair with GeniSys CAD Cell Flame Detector Kit 7006U for full burner control.
-
Verify input voltage (21.6–30 VDC) and ambient temperature range for your equipment.
-
Use only genuine Beckett GeniSys controls to ensure safe, reliable operation in industrial or commercial equipment.
-
Keep diagnostic and programming tools on hand for maintenance and adjustments.
