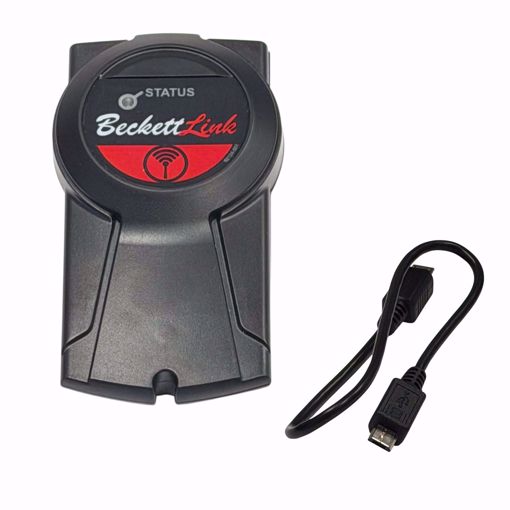

Beckett 7700A0001U – BeckettLink Diagnostic & Configuration Tool
The BeckettLink 7700A0001U is a smart, easy-to-use diagnostic and configuration tool designed for Beckett 7586 and 7590 series gas ignition controls. Technicians can connect via a smartphone or tablet using a standard web browser—no app or internet required. BeckettLink provides real-time access to control status, diagnostics, and configuration, making troubleshooting faster and more precise.
⚠️ Important: Only connect the BeckettLink Tool or 7710A Alarm Module to the COM port. Connecting any other device (phone, tablet, computer) will damage both the tool and the control.
✅ Key Features
-
Creates its own Wi-Fi signal; no internet needed
-
Works with a standard web browser; no app required
-
Monitors input voltage, flame signal, and control status
-
Configures pre-purge and ignition trial timing
-
Adjusts lockout logic (single trial, multiple trial, continuous retry for 7586T)
-
Displays last 10 faults and last 10 cycles
-
Resets fault and cycle counters
-
Powered via 24 VAC from the gas ignition control COM port
📊 Specifications
| Attribute | Specification |
|---|
| Model / Part Number |
7700A0001U |
| Compatible Controls |
Beckett 7586, 7590 Series Gas Ignition Controls |
| Connectivity |
Local Wi-Fi signal (no internet required) |
| Interface |
Standard web browser (Chrome, Safari, Firefox, etc.) |
| App Required |
None |
| Power Source |
24 VAC from gas ignition control COM port |
| Frequency |
50/60 Hz |
| Input Voltage |
24 VAC |
| Diagnostic Functions |
Input voltage, flame signal, control status, last 10 faults, last 10 cycles, fault/cycle counters |
| Configuration Functions |
Pre-purge timing, ignition trial timing, lockout logic (single trial, multiple trial, continuous retry) |
| Enclosure / Port Connection |
Micro-USB COM port on Beckett control only |
| Safety Notes |
Do not connect any other device to the COM port |
| Operating Environment |
Indoor use; avoid moisture and extreme temperatures |
🔧 Symptoms of a Faulty or Failing BeckettLink Tool
-
❌ Cannot connect to the BeckettLink Wi-Fi signal
-
❌ Web interface fails to load
-
❌ Intermittent or dropped connection
-
❌ Tool powers on but does not communicate with the control
-
❌ Incorrect or missing status readings (voltage, flame signal, fault history)
-
❌ Unable to modify control settings
-
❌ No access to fault or cycle history
❓ Frequently Asked Questions (FAQ)
Q: Does the BeckettLink Tool require an internet connection?
A: No, it creates a local Wi-Fi signal and does not connect to the internet.
Q: Do I need to download an app?
A: No app is required. Use a standard web browser.
Q: Which controls are compatible?
A: Beckett 7586 and 7590 series gas ignition controls.
Q: Can I connect a phone or computer directly to the micro-USB port?
A: No. Only connect the BeckettLink Tool or 7710A Alarm Module to avoid damage.
Q: Can it be used for remote monitoring?
A: No. BeckettLink is strictly a local diagnostic and configuration tool.
Q: What diagnostic information does it provide?
A: Input voltage, flame signal, control status, last 10 faults, last 10 cycles, and fault/cycle counters.
Q: Can it adjust control parameters?
A: Yes, it can configure pre-purge timing, ignition trial timing, and lockout logic (single, multiple, or continuous retry for 7586T).
Q: How is it powered?
A: Powered via 24 VAC from the gas ignition control COM port.
Q: Can BeckettLink be used as a safety or limit control?
A: No, it is not a safety or limit control device. Use separate safety/limit controls as required.
🛒 Shopping Tips
-
Ensure you are using a Beckett 7586 or 7590 control.
-
Use a supported smartphone or tablet with a standard web browser.
-
Avoid direct USB connections to other devices.
-
Follow manufacturer installation guidelines to prevent damage.
-
Keep the tool away from moisture and extreme heat.
