BECKETT ADC 24VDC OIL BURNER CHASSIS

Manufacturer: Beckett

B101 BECKETT ADC 24VDC OIL BURNER CHASSIS Model ADC 24VDC Oil Burner Chassis Firing Range - Firing Rate (27V) 0.75 to 3.00 GPH Input 105,000 to 420,000 Btu/h - Firing Rate (24V) 0.75 to 2.50 GPH - Input 105,000 to 350,000 Btu/h Electrical - Burner Voltage (nominal): 27 Vdc - Voltage Range: 21.6V - 28V Operating Load w/ igniter on 9 Amps w/ igniter off: 6 - 8 Amps Motor Voltage (nominal): 27Vdc - Voltage Range: 21.6V - 30V - Full Load Amps: 6.1 Amps - Starting Amps: 50 Amps - 1/7 HP, 3500 RPM, NEMA “M” Flange - Igniter Voltage (nominal): 24Vdc Voltage range: 21.6V - 32V - Current: 1.2 Amps Ign. - Secondary: 19kVpk 35mA - Interrupted OR intermittent duty Valve Coil Voltage: 24 Vdc - Current: < 0.5A Dimensions - Height (Maximum) 11-1/2" - Width (Maximum) 14-3/8" - Depth (Chassis Only) 6-9/16" Fuel - USA No.1 or No. 2 Diesel Fuel or Kerosene - No. 1 or No.2 Heating Oil (ASTM D396) Ambient Temp Range - 32 to 115 F Beckett Motor Part Number 21773U - 1/7 HP - 27 VDC - 6.0 Amps - 150 F Max Ambient Temp - 3500 RPM Beckett Igniter Part Number 5272001U Beckett ADC 24 Vdc Replaces 5218501U - 24 VDC - Input 20.6 to 32 Vdc 2.0 Amps - Output 20KV - Output 25mA - Ambient Temp Range -40 to 150 F Beckett Primary Control Part Number 7559A0000U - 24V - Input 21.6 to 30 VDC, 0.3 Amps - Motor 10 FL Amps, 50 LR Amps - Igniter 3 Amps - Valve 1 Amp - Lockout Alarm 1 Amp - Enable Load 0.02 Amps - Ambient Temperature -40 to 160 F The Beckett GeniSys 7559 Oil Burner Control is a potted (for high moisture environments) 24 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys 7559 is used with the GeniSys CAD Cell Flame Detector Kit 7006U to control the oil burner’s motor, igniter, and optional solenoid valve. The control operates the burner with interrupted ignition with a 15 second lockout time. With the GeniSys Contractor Tool 52082, the control can be programmed with pre-purge and post-purge timings. For diagnostics, the GeniSys 7559 stores the last 15 cycles. Beckett Fuel Pump Part number PF20342 (A2EA-6527) - 24VDC - 4 GPH @ 100 to 150 PSI N. 1 & 2 Fuel - 3 GPH @ 150 to 200 PSI N. 2 Fuel - 3450 RPM - 1 Stage - 3GPH - - Previous Part Number PF10342U Beckett Coil Valve Part Number 3713818U - 24V - 8 Watts - IP54 Some More Beckett Part Numbers to know - Blower Wheel 2999U - Coupling 2140501U - Burner House Black 5874BKU - 8" Copper Tubing 5394 - Escutcheon Plate Spline Nut 3666 - Escutcheon Plate 3493 - Wiring Box Kit 4 X4 5770 - Cord Set 21807 - Air Shutter 4 Slot 3709 - Air Shutter 8 Slot 3494

THIS IS A CHASSIS ONLY, BLAST TUBE AND FLANGE NEED TO BE ORDERED SEPARATELY.

SKU: BECKETT:B101

Product Availability: 1

Share:

Share on Twitter

Share on Facebook

Share on Pinterest

Share on Google Plus

$920.29

This product must be purchased in increments of 1

Qty:
i h

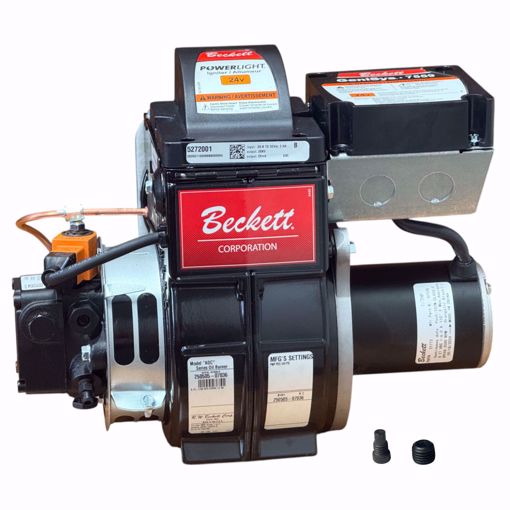

B101 BECKETT ADC 24VDC OIL BURNER CHASSIS

Model ADC 24VDC Oil Burner Chassis

Firing Range
- Firing Rate (27V) 0.75 to 3.00 GPH
Input 105,000 to 420,000 Btu/h

- Firing Rate (24V) 0.75 to 2.50 GPH
- Input 105,000 to 350,000 Btu/h

Electrical
- Burner Voltage (nominal): 27 Vdc
- Voltage Range: 21.6V - 28V

Operating Load
w/ igniter on 9 Amps
w/ igniter off: 6 - 8 Amps

Motor Voltage (nominal): 27Vdc
- Voltage Range: 21.6V - 30V
- Full Load Amps: 6.1 Amps
- Starting Amps: 50 Amps
- 1/7 HP, 3500 RPM, NEMA “M” Flange
- Igniter Voltage (nominal): 24Vdc Voltage range: 21.6V - 32V
- Current: 1.2 Amps Ign.
- Secondary: 19kVpk 35mA
- Interrupted OR intermittent duty

Valve Coil Voltage: 24 Vdc
- Current: < 0.5A

Dimensions
- Height (Maximum) 11-1/2"
- Width (Maximum) 14-3/8"
- Depth (Chassis Only) 6-9/16"

Fuel
- USA No.1 or No. 2 Diesel Fuel or Kerosene
- No. 1 or No.2 Heating Oil (ASTM D396)

Ambient Temp Range
- 32 to 115 F

Beckett Motor Part Number 21773U
- 1/7 HP
- 27 VDC
- 6.0 Amps
- 150 F Max Ambient Temp
- 3500 RPM

Beckett Igniter Part Number 5272001U Beckett ADC 24 Vdc Replaces 5218501U
- 24 VDC
- Input 20.6 to 32 Vdc 2.0 Amps
- Output 20KV
- Output 25mA
- Ambient Temp Range -40 to 150 F

Beckett Primary Control Part Number 7559A0000U
- 24V
- Input 21.6 to 30 VDC, 0.3 Amps
- Motor 10 FL Amps, 50 LR Amps
- Igniter 3 Amps
- Valve 1 Amp
- Lockout Alarm 1 Amp
- Enable Load 0.02 Amps
- Ambient Temperature -40 to 160 F

The Beckett GeniSys 7559 Oil Burner Control is a potted (for high moisture environments) 24 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys 7559 is used with the GeniSys CAD Cell Flame Detector Kit 7006U to control the oil burner’s motor, igniter, and optional solenoid valve. The control operates the burner with interrupted ignition with a 15 second lockout time.

With the GeniSys Contractor Tool 52082, the control can be programmed with pre-purge and post-purge timings. For diagnostics, the GeniSys 7559 stores the last 15 cycles.

Beckett Fuel Pump Part number PF20342 (A2EA-6527)
- 24VDC
- 4 GPH @ 100 to 150 PSI N. 1 & 2 Fuel
- 3 GPH @ 150 to 200 PSI N. 2 Fuel
- 3450 RPM
- 1 Stage - 3GPH -
- Previous Part Number PF10342U

Beckett Coil Valve Part Number 3713818U
- 24V
- 8 Watts
- IP54

Some More Beckett Part Numbers to know
- Blower Wheel 2999U
- Coupling 2140501U
- Burner House Black 5874BKU
- 8" Copper Tubing 5394
- Escutcheon Plate Spline Nut 3666
- Escutcheon Plate 3493
- Wiring Box Kit 4 X4 5770
- Cord Set 21807
- Air Shutter 4 Slot 3709
- Air Shutter 8 Slot 3494

THIS IS A CHASSIS ONLY, BLAST TUBE AND FLANGE NEED TO BE ORDERED SEPARATELY.

Products specifications

Manufacturer Beckett
