Specifications
- Operation: On/Off
- Rate: 1.65 to 3.75 GPH
Fuels:
- No. 1 or No. 2 heating oil (ASTM D396)
- ASTM D396 for B6 – B20 biodiesel blends
Motor:
- 1/7 HP 3450 RPM PSC
- 120/60 Hz Standard
- 1.7 amps @ 120 VAC
- Ignition Trans.: 120V/12,000V
- Housing: Cast aluminum
- Fuel Unit: 100 to 200 psig
- Oil Nozzle: 45˚ to 70˚ Solid
Cross-References
Burner Cross-Reference:
- Carlin: 102CRD
- Riello: F10
Commercial Burner Motors:
- 21805U – PSC (1/7HP; 3450RPM; 120Vac)
Commercial Burner Pumps:
- Suntec: 2591U – A2YA-7916 (single phase; 7GPH@100psi)
- Suntec: 21188U – B2YA-8916 (2- phase; 7GPH@100psi)
- New York City Oil Pumps / DAR Kits: 51871U – B2TA-8248/DAR Mounted (single phase; 8GPH@100psi)
Transformer & Electronic Igniters with base plate:
- 51771U – Igniter with Beckett ‘A’ Base
- 51826U – Igniter with Carlin 100 Base
Features
- On/Off standard operation
- UL/cUL Standard
- Cast Aluminum Housing for robust construction and quite operation
- Direct spark ignition
- 1/7 HP PSC motor 120 V standard
- Remote mounted control panels available
Certified for biodiesel blends up to 20% (D396 for B6-B20) to give consumers reliable performance while reducing the carbon footprint of their heating system.

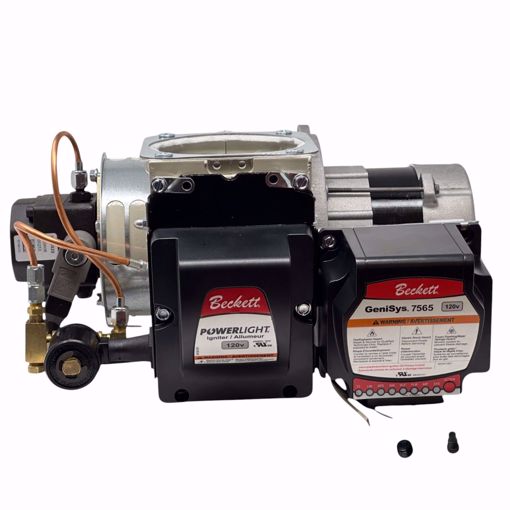

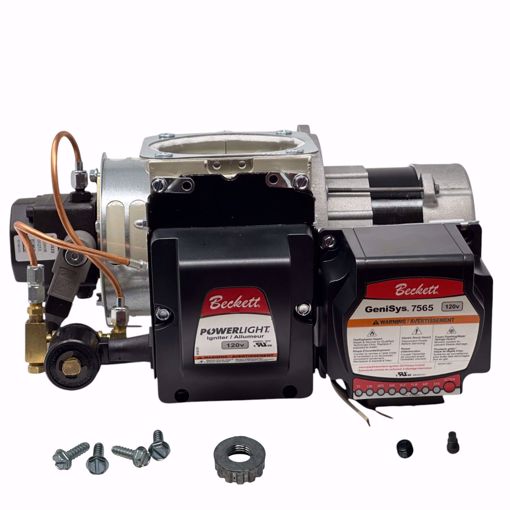

The Beckett CF375 oil burner’s design and technically advanced components meet increasing demand for improved performance in high-efficiency appliances in light commercial/industrial applications. Our CF375 series utilize a proven combustion technology and our chassis coupled with a welded insertion make a perfect match to your appliance.
BCF3907
