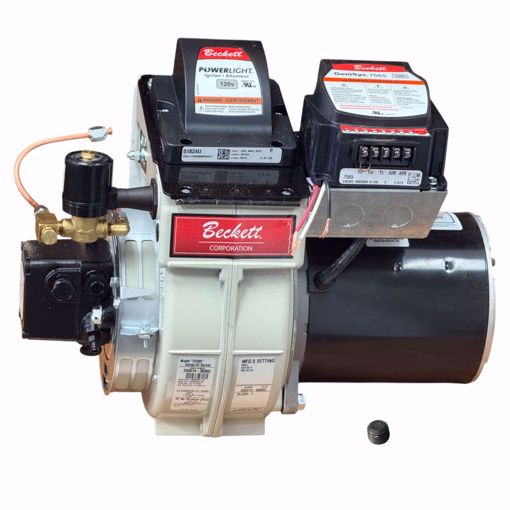

BECKETT CF-800 OIL BURNER CHASIS W/ ON/OFF B PUMP

Beckett BCF403 CF800 Oil Burner Chasis On/Off With Genisys Control ***NOTE*** This is For The Chasis Only. This Does NOT Include A Blast Tube And Assembly Kit, A Flange And Gasket Kit Or A Nozzle. They Are All Sold Separate And Need To Be Sized Based On The Appliance They Are Being Fired Into. Capacities 3.0 to 8.0 gph 420,000 to 1,120,000 BTU/hr input Fuels No. 1 or 2 heating oil only ASTM D396 Dimensions (chassis only) Height: 13-1/2' Width: 14-3/4' Depth: 8-1/2' Electrical Characteristics Motor: 1/3 hp, 3450 rpm Power Supply: 120 V./60Hz. Ignition: 14k 120v solid state igniter Operating Load: 4.5 amp. at 120 V. Alternated Voltages or Frequency: Consult Customer Service Fuel Unit 140-150 psi Oil Nozzle 45-60-70 degree solid Model CF800 Oil Burner The CF800 takes advantage of design principles proven in Beckett residential oil burners and applies them to create an industrial/commercial burner with high efficiency and dependability. The burner achieves maximum combustion by combining single nozzle operation with the Beckett superior air tube design. The problem of heat-wasting flame turbulence has been eliminated.
