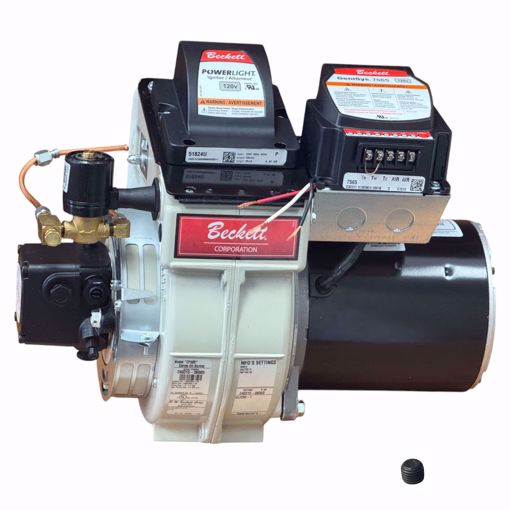

BCF809 Beckett CF500 Oil Burner Chassis with 15-Second Primary Control (B2YA-8916B Pump)

🔥 Product Overview

The Beckett CF500 oil burner’s design and technically advanced components meet increasing demand for improved performance in high-efficiency appliances in light commercial and industrial applications. The CF500 utilizes proven combustion technology, and the chassis coupled with a welded insertion makes a perfect match to your appliance.

Certified for biodiesel blends up to B20 (ASTM D396 for B6–B20) to provide reliable performance while helping reduce the carbon footprint of heating systems.

Note: This is the chassis only. Blast tube, nozzle, flange kit, and gasket kit are sold separately and must be sized per application.

⚠️ Important Notes:
• Blast tube not included — must be selected separately using the Beckett specification guide based on your specific appliance model.
• Professional installation and combustion adjustment by a certified technician using a calibrated combustion analyzer is required to ensure safe and efficient operation.

⚙️ Key Features & Components

✅ Igniter – Beckett 51824U

• Input: 120V, 60Hz, 35VA

• Output: 20 kVpk, 35 mA

• Operating Temperature: -40°F to 150°F

• Vacuum encapsulation provides moisture resistance, excellent heat dissipation, and electrical insulation

• High-temperature thermoplastic case: impact-resistant, scratch-resistant, oil- and chemical-impermeable

• Epoxy potting prevents shrinking or cracking

• Universal replacement for Beckett and other manufacturer igniters

✅ Primary Control – Beckett GeniSys 7505 (7505C1515U)

• Inputs: 120V nominal (102–132V), 100 mA nominal (150 mA max), 60Hz

• Outputs: Motor 120V (10 FLA, 60 LRA), Igniter 120V (3 A @ 0.7 PF), Solenoid 120V (1 A @ 0.7 PF)

• Lockout Time: 15 sec

• Valve-on Delay / Motor-off Delay: 15 sec each

• Ambient Storage: -40°F to +150°F, water-resistant

• Thermostat and boiler control compatible

• Customizable pre- and post-time with three status lights for diagnostics

• Works with GeniSys CAD Cell Flame Detector Kit 7006U

✅ Motor – Beckett 21341U

• 1/3 HP, 3450 RPM, 115V, 60Hz, 1 Phase

• Thermally protected with reset button

✅ Fuel Pump – Beckett PF207N2U / Suntec B2YA-8916B

• Two-stage oil pump: 7 GPH @ 100–150 PSI, 3 GPH @ 150–200 PSI

• 3450 RPM, supports #2 fuel oil and lighter fuels, as well as B6–B20 biodiesel blends

• Nozzle outlet faces right when viewed from pump shaft

• Reliable fuel transfer for industrial and commercial applications

✅ Oil Valve Kit – Beckett 21789U

• 120V / 60Hz

✅ Blower Wheel – Beckett 21448U

• Size: 5-19/32" × 2-13/32"

✅ Additional Components / OEM Parts on Unit

• Burner Housing: 51373-14

• Air Shutter: 3215 (10 Slot)

• Air Band: 3819

• Nozzle Line Escutcheon Plate: 51286U

• Wiring Box Hole Plug: 2139

• Burner Coupling: 2433

• Air Guide: 189U

• Connector Tube Assembly: 5394

• Electrical Box: 5770

• CAD Cell Eye: 7006U

• Electrode Kit: 51345

• Universal Pressure Flange Kit: 51311

• Splined Nut: 3666

• Pedestal Kit: 5685

• Retention Head: 51401U

📊 Specifications

⚠ Common Symptoms This Burner Solves

• Hard starting burners
• Poor combustion efficiency
• Noisy or vibrating burners
• Lockouts and nuisance shutdowns
• Weak ignition performance
• Inconsistent flame stability

❓ Frequently Asked Questions

Q: Does this include a blast tube?
No — blast tube, nozzle, and flange/gasket kits are sold separately.

Q: What fuels can it run?
No.1 or No.2 heating oil and biodiesel blends B6–B20.

Q: Is this residential or commercial?
Designed for light commercial and industrial heating appliances.

Q: Is professional installation required?
Yes — installation and combustion setup must be performed by a certified technician.

🛒 Shopping Tips

🧭 Select the correct blast tube using Beckett sizing charts
🛢 Match nozzle size to your appliance firing rate
🔧 Always perform combustion analysis after installation
📏 Verify flange and gasket kit compatibility
