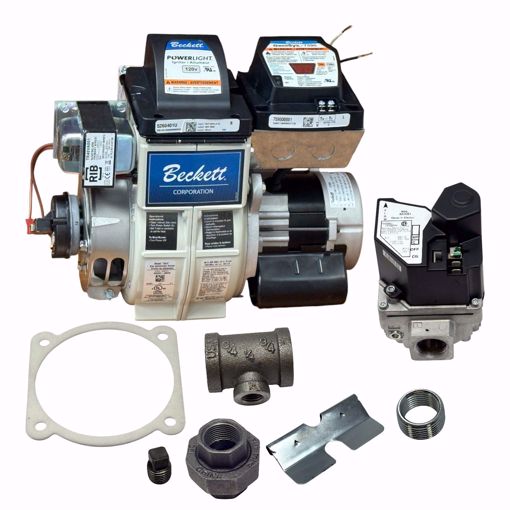

NATURAL GAS CONVERSION BURNER W/ GENISYS 7590 3/4 INCH

CG4001 NATURAL GAS CONVERSION BURNER W/ GENISYS 7590 3/4 INCH Specifications - Capacity 80,000 - 250,000 btu/hr input - Fuels Natural gas or LP gas Dimensions (standard) • Height: 14.4” , 10.3” (Chassis only) • Width: 13.1” • Depth: 15.8” (with Air Tube) Electrical Characteristics • Motor: 1/7 HP, NEMA 48M frame, PSC • Power Supply: 120V AC, 60 Hz, single phase • Ignition: Direct Spark • Operating Load: 3 Amps Max. • Gas Valve 24 volt regulating gas valve Advanced Components • New GeniSys Gas Burner Control • 24volt standard Gas Valve • New Beckett Gas Igniter • PSC Motor • Removable Gun Assembly CG4 Components Beckett GeniSys Burner Control • Programmable pre purge settings. • Three status lights for system monitoring & diagnostics. • Monitors Air Proving Switch • Designed for easy mounting on 4x4 box. • Recycle operation on loss of flame. • Search 7590 at Beckettcorp.com for available options. Beckett Igniter • Higher output voltage for reliable ignition. • Approximately 75% lower input amps. • Part number 5260401U PSC Motor • Lower amp draw & cooler operation. • Delivers more power with the PSC design (permanent split capacitor). • Proven durability after 10 years of high reliability in the field. • Ball bearings for longer life. • Part number 21805U 52279-001 parts bag which includes baffle, tee, and union BECKETT:3380 Gasket Housing Square BECKETT:5880 Low Fire Rate Baffle Features - Proven Beckett Fixed Retention Heads - Gun Assembly removable for ease of service - Gas Train can be piped to the left or right - Easy Access to rate setting orifice In the CG4 gas burner, technically advanced components meet increased demand for improved gas burner performance in high-efficiency appliances and modern well-insulated homes. These advanced components are available on our CG4 series chassis and coupled with a welded insertion make a gas burner to match your OEM appliance. Performance-enhancing combustion technology utilizing proven fixed-head burner design. **DOES NOT INCLUDE BLAST TUBE AND ASSEMBLY, BLAST TUBE MUST BE CHOSEN FROM SPECIFICATION GUIDE BASED ON APPLIANCE** **THIS PRODUCT SHOULD ONLY BE INSTALLED BY A CERTIFIED TECHNICIAN AND MUST BE ADJUSTED WITH A CALIBRATED COMBUSTION ANALYZER**
