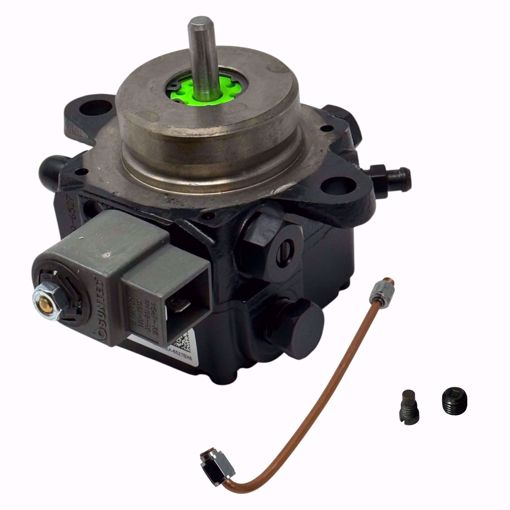

PF20322U 120V SINGLE STAGE CLEAN CUT OIL PUMP

Manufacturer: Beckett

PF20322U 120V SINGLE STAGE CLEAN CUT OIL PUMP - PF20322 Single Stage 4 GPH Max Pressure 200 PSI 120 Volts Manufacturer Part No. A2EA-6527B Previous Beckett Part No. PF10322U CleanCut Oil Pumps The Beckett family of CleanCut pumps was developed to combine the benefits of solenoid valve control of fuel to the nozzle and the superior lift capabilities of traditional American pumps. The CleanCut pump has established a reputation as a rugged and reliable component for modern heating systems. Now UL Listed for fuels up to 100% biodiesel (B100) the CleanCut pump continues to set the standard of the industry. Cleaner Operation The solenoid valve cuts oil flow almost instantly when power is cut to the motor, eliminating coasting stops that can cause soot formation on shut-down. Pre-purge type controls work hand-in-hand with the CleanCut pump to establish airflow and bring pump pressure up to full operating levels before light-off. this ensures smoother and cleaner light-offs. More Reliable There are fewer moving parts, compared to conventional pumps and fewer troublesome oil fittings to cause problems. In addition, all of the moving parts in the CleanCut have been in use for years either in the US or in Europe. Reduced Load on Motor Configurations using an external valve deadhead pressure against the valve during start-up, increasing load on the motor. The CleanCut pump reduces demands on the motor during start-up by allowing oil to freely bypass the pump’s piston. Higher Capacity The unique design of the CleanCut pump delivers up to 4 gallons per hour at 100 psi. (Note that applications above 3 gph will require an additional valve due to UL requirements). Leak-Through Protection The CleanCut pump utilizes the same piston valve used in traditional pumps, to provide the same level of protection from leak-through in gravity feed situations.

SKU: BECKETT:PF20322U

Product Availability: 5

$118.62

This product must be purchased in increments of 1

Qty:

i h

PF20322U 120V SINGLE STAGE CLEAN CUT OIL PUMP
Single Stage 4 GPH
Max Pressure 200 PSI
120 Volts
Manufacturer Part No. A2EA-6527B
Previous Beckett Part No. PF10322U
CleanCut Oil Pumps
The Beckett family of CleanCut pumps was developed to combine the benefits of solenoid valve control of fuel to the nozzle and the superior lift capabilities of traditional American pumps. The CleanCut pump has established a reputation as a rugged and reliable component for modern heating systems. Now UL Listed for fuels up to 100% biodiesel (B100) the CleanCut pump continues to set the standard of the industry.
Cleaner Operation
The solenoid valve cuts oil flow almost instantly when power is cut to the motor, eliminating coasting stops that can cause soot formation on shut-down. Pre-purge type controls work hand-in-hand with the CleanCut pump to establish airflow and bring pump pressure up to full operating levels before light-off. this ensures smoother and cleaner light-offs.
More Reliable
There are fewer moving parts, compared to conventional pumps and fewer troublesome oil fittings to cause problems. In addition, all of the moving parts in the CleanCut have been in use for years either in the US or in Europe.
Reduced Load on Motor
Configurations using an external valve deadhead pressure against the valve during start-up, increasing load on the motor. The CleanCut pump reduces demands on the motor during start-up by allowing oil to freely bypass the pump’s piston.
Higher Capacity
The unique design of the CleanCut pump delivers up to 4 gallons per hour at 100 psi. (Note that applications above 3 gph will require an additional valve due to UL requirements).
Leak-Through Protection
The CleanCut pump utilizes the same piston valve used in traditional pumps, to provide the same level of protection from leak-through in gravity feed situations.

Beckett, PF20322U, PF10322U, 2184404U, 21844U, A2EA6527 120V Single Stage Clean Cut Oil Pump New Beckett Part Number PF10322U The Beckett CleanCut pump has an integrated solenoid valve for cleaner light-offs and shut-offs. Without the valve, an oil pump will spray oil before the motor has reached full speed at start up, and it will continue to allow oil to spray as the motor coasts after shut off - both of which result in soot formation in the heat exchanger. The CleanCut pump will help the heat exchanger stay cleaner and the furnace/boiler will operate more efficiently because of it. Specifications: Single Stage 3450 RPM 120 vac 4 GPH ***NO LONGER INCLUDES DELAY TIMER. FOR DELAY TIMER PURCHASE 21887U*** ***NO LONGER INCLUDES POWER CORD. FOR POWER CORD PURCHASE 21807U*** Replacement For Suntec / Beckett Part Numbers A2EA6520, A2EA-6520, A2EA-6528, A2EA6528 Functional replacement of Danfoss 071N1180 without the use of the delay timer cord.
