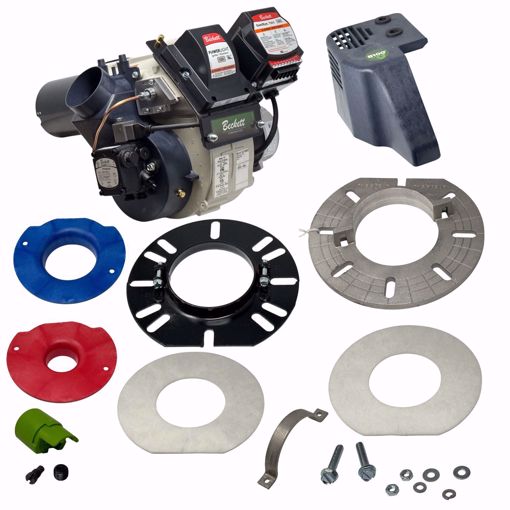

RF101 OIL, BIODIESEL BURNER WITH 7 INCH AIR TUBE AND FLANGE

RF101 BECKETT RF OIL BIODIESEL BURNER COMPLETE WITH 7 INCH AIR TUBE AND FLANGE The Beckett RF Oil, Biodiesel, and Renewable Diesel Burner is UL Listed and rigorously tested for use with up to 100% biodiesel (B100), 100% renewable diesel (R100), and traditional #1 and #2 fuel oils. Part # RF101 Burner with 7" Air Tube, 6-slot head - GPH Range 0.38 - 1.00 - Air Guide Installed White 2.0" Diameter (Installed) Red & Blue included Technical Specifications Capacity - 0.38 to 3.00 GPH, 120V/60Hz, 5.8 Amps - 56,000 to 420,000 BTU/Hr Fuels - ASTM D396 FOR #1 & #2 Heating oil - ASTM D396 for B6 – B20 Biodiesel blends - ASTM D6751 for B100 - ASTM D975 for Diesel Fuel and Renewable Diesel - CAN / CGSB – 3.2 for Heating Oil Types #0, #1, and #2 Electrical Characteristics - Power Supply: 120 VAC / 60Hz - Operating Load: - 5.8 Amps maximum - 240 VAC – Available (Contact factory) Dimensions (Standard) - Height: 10.900″ - Width: 13.700″ - Depth: 9.835″ Standard Components Motor - 1/7 HP 3450 RPM Type PSC Igniter - Beckett PowerLight Solid state - Rated for continuous duty Fuel Pump - Beckett CleanCut PF2032x: Single Stage - Beckett CleanCut 2-Stage Available: Contact Factory Control - Beckett GeniSys 7565 120V Advanced Oil Burner Control with myTechnician app for programming and diagnostics Features and Benefits Improved Combustion - Quiet Performance The Beckett RF Burner has increased air capacity and quiet operation. - Air Intake The fuel pump is separated from the fresh air intake, improving burner performance during cold air intake. - Head Design Burner head design ensures a stable flame base for all fuels and reduces coking. - Adjustable Flange Burner-in-a-box provides an adjustable flange with a 2° pitch built-in for optimal performance. - State-of-the-Art Airflow The Beckett RF Burner airflow design boosts velocity by utilizing the whole air tube, resulting in better combustion with optimized air flow. - Increased Air Capacity Highly adjustable with air guides, adjustable head setting, and single air adjustment band. Versatility - Fuel Agnostic Combustion Technology (F.A.C.T.) Easily transitions between No. 2 and B100/R100 fuel types. - Air Proving Kit The air proving switch kit easily adds combustion air proving (CAP) to any Beckett RF Burner installation. - System Flexibility Approved specs operate in various scenarios; tested with #2 and up to B100 fuel oil, with and without baffles, direct and chimney vents. - Flame Shaping Nozzle line assembly and airflow adjustments provide more effective flame shaping through two distinct adjustments. - Outside Air Adapter Allows ducting from virtually any direction. - Flame Sighting The Beckett RF Burner cad cell’s position offers greater tolerance and reduced position sensitivity Ease of Use - Optimized Air Intake Design Features a built-in fresh air intake system, isolated from the pump bleed port, reducing the risk of oil entering the burner housing. - Optimized Design for User Simplicity The z-dimension is easily set by inserting the nozzle line flush with the end of the air tube. - Air Adjustment with Ducting Easily and accurately adjust air with the ducting in place, without needing to remove a cover. - Ease of Access to Service The control and igniter mounted on a single plate simplify nozzle line access and offer wide-open access to the burner interior and wiring. - Readily Available Beckett Parts Utilizes the same major component parts found on other Beckett burners. Includes Burner Accessories - (1) Beckett 5850 Adjustable Split Flange Used for 0 degrees pitch applications - (1) 51634U Adjustable Flange with a 2˚ Pitch Used for 2˚ pitch applications, 2˚ pitch built into flange Contents - (1) 33261M (2 degrees) Flange - (1) 33246 Clamp - (1) 31643 Gasket - (2) 1/4-20x1-1/4" Machine screw - (2) 1/4-20 Hex nut - (2) 1/4 Lock Washer - (2) Flat Washer -(1) 52684-003U Air Guide Kit - Red — 1.5" Diameter - Low Rate / Low Air Enhances air adjustability for low firing rates and natural draft applications - White — 2.0" Diameter - Mid Rate / Mid Air Works in most applications - Blue — 2.5" Diameter - High Rate / High Air Increases air capacity for high firing rates and positive pressure appliances - (1) 52722-001 RF Oil Burner Electrode Setting Gauge. Beckett G Gauge allows the technician to properly adjust the electrodes to Beckett specifications. ** Note Keep this gauge for future use on the RF burner or if you need to set the electrodes on a Beckett NX, AFII, HLX or AF2 burner. ** The Beckett RF Oil, Biodiesel, and Renewable Diesel Burner is UL Listed and rigorously tested for use with up to 100% biodiesel (B100), 100% renewable diesel (R100), and traditional #1 and #2 fuel oils. This burner is engineered to meet the evolving demands of modern equipment and the shift towards renewable fuels, offering a firing range of 0.38 to 1.75 GPH. The Beckett RF Oil, Biodiesel and Renewable Diesel Burner is expertly engineered to meet the evolving demands of modern equipment and the shift towards more sustainable fuels. Featuring the most advanced components available, the Beckett RF Burner is UL Listed and rigorously tested for use with up to 100% biodiesel (B100), 100% renewable diesel (R100), and traditional #1 and #2 Fuel Oil. This innovation sets a new standard in efficiency and sustainability, ensuring reliable performance while significantly reducing the carbon footprint of your heating system. As technology has advanced, so have our burners and components. The Beckett RF Burner embodies this evolution, providing you with efficiency and peace of mind. Each unit comes with a 5-year factory warranty, guaranteeing long-term reliability and value Upgrade to the Beckett RF burner today and experience the perfect blend of cutting-edge technology, unmatched reliability and environmental responsibility. Take the next step in reducing your carbon footprint without compromising on performance.
