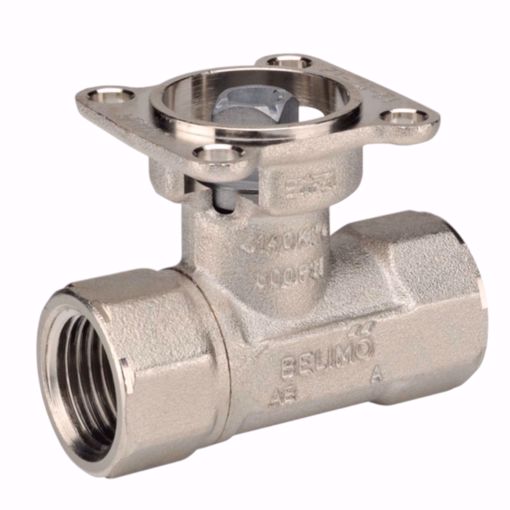

3/4 2WAYVLV 10CV S.S. TRIM

Manufacturer: Belimo

- Pattern 2-way - 10 Cv - Fluid Chilled or hot water, up to 60% glycol - Body Pressure Rating 600 PSI - Flow characteristic {Tools} Equal percentage - End Fitting Internal thread - Trim Stainless steel - Valve Size 0.75" ( 3/4") - Closed Off Pressure 200 PSI Suitable Return Actuators for the B219 Type CCV Valve Include: TR Series (Non-Spring) LR Series (Non-Spring) NR / N4 Series (Non-Spring) TF Series (Spring) LF Series (Spring) This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.

SKU: BELIMO:B219

Product Availability: 1

$126.22

This product must be purchased in increments of 1

Qty:

i h

- Pattern 2-way
- 10 Cv
- Fluid Chilled or hot water, up to 60% glycol
- Body Pressure Rating 600 PSI
- Flow characteristic {Tools} Equal percentage
- End Fitting Internal thread
- Trim Stainless steel
- Valve Size 0.75" ( 3/4")
- Closed Off Pressure 200 PSI

Suitable Return Actuators for the B219 Type CCV Valve Include:
TR Series (Non-Spring)
LR Series (Non-Spring)
NR / N4 Series (Non-Spring)
TF Series (Spring)
LF Series (Spring)

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.

Products specifications

Manufacturer	Belimo
