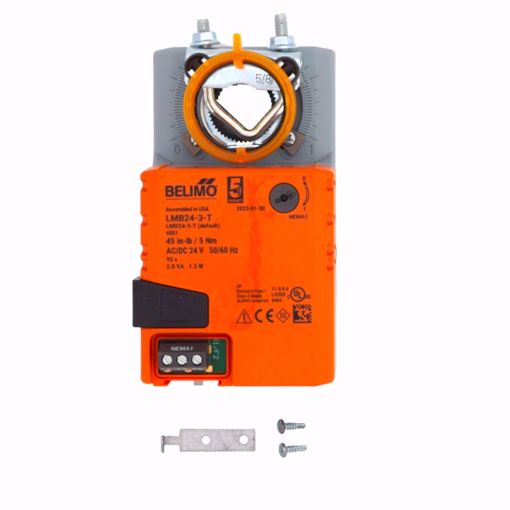

LMB24-3-T ACTUATOR ROTARY 45 IN-LB ON/OFF/FLOAT 24VAC, 24VDC

Manufacturer: Belimo

Specifications - Voltage AC/DC: AC/DC 24 V Power Consumption (Running): 1.5 W Power Consumption (Holding): 0.2 W Power Consumption For Wire Sizing: 2.5 VA Torque: 45 in-lb [5 Nm] Control Type: Floating/3-point Direction Of Motion Motor: selectable with switch 0/1 Manual Override: External push button Angle of Rotation: 95 Running Time (Motor): 95 s / 90° Protection category: IP20 Degree Of Protection NEMA: NEMA 1 Enclosure Type: UL Enclosure Type 1 Ambient Temperature: -22...122°F [-30...50°C] Basic Non Fail-Safe actuator for controlling dampers in typical commercial HVAC applications. • Torque motor 45 in-lb [5 Nm] • Nominal voltage AC/DC 24 V • Control On/Off, Floating point

SKU: BELIMO:LMB24-3-T

Product Availability: Out of stock

$105.82

This product must be purchased in increments of 1

Qty:

i h

Specifications
- Voltage AC/DC: AC/DC 24 V
Power Consumption (Running): 1.5 W
Power Consumption (Holding): 0.2 W
Power Consumption For Wire Sizing: 2.5 VA
Torque: 45 in-lb [5 Nm]
Control Type: Floating/3-point
Direction Of Motion Motor: selectable with switch 0/1
Manual Override: External push button
Angle of Rotation: 95
Running Time (Motor): 95 s / 90°
Protection category: IP20
Degree Of Protection NEMA: NEMA 1
Enclosure Type: UL Enclosure Type 1
Ambient Temperature: -22...122°F [-30...50°C]

Basic Non Fail-Safe actuator for controlling
dampers in typical commercial HVAC
applications.
• Torque motor 45 in-lb [5 Nm]
• Nominal voltage AC/DC 24 V
• Control On/Off, Floating point

Products specifications

Manufacturer	Belimo
