5/8BORE SPLITTAPERBUSHING

Manufacturer: Browning

H 5/8 BROWNING 5/8" BORE SPLIT TAPER BUSHING Specifications - Barrel Diameter Large End 1-5/8 in - Barrel Diameter Small End 1.57 in - Bolt Circle Diameter 2 in - Bushing Size H - Flange Thickness 1/4 in - Keyway Size 3/16 x 3/32 - Number Of Bolt Holes 2 - Screw Length 3/4 in - Screw Thread Size 1/4 in - Material Sintered Steel or Ductile Iron - Mounting Type Conventional Features - Solid Flange & Double Split Barrel - Assures better concentricity to the shaft. - 3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

SKU: BROWNING:H 5/8

Product Availability: Out of stock

$22.09

This product must be purchased in increments of 1

Qty:

i h

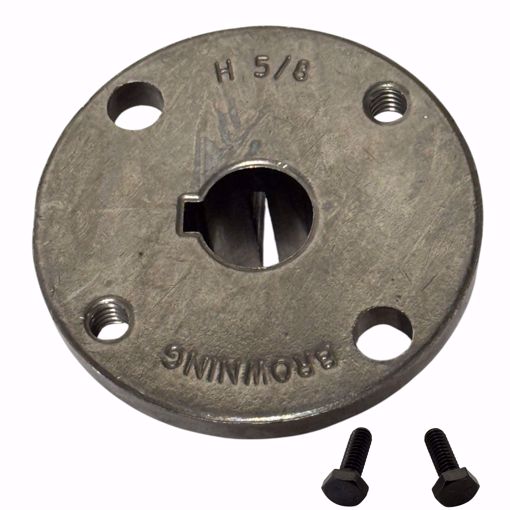

H 5/8 BROWNING 5/8" BORE SPLIT TAPER BUSHING

Specifications
- Barrel Diameter Large End 1-5/8 in
- Barrel Diameter Small End 1.57 in
- Bolt Circle Diameter 2 in
- Bushing Size H
- Flange Thickness 1/4 in
- Keyway Size 3/16 x 3/32
- Number Of Bolt Holes 2
- Screw Length 3/4 in
- Screw Thread Size 1/4 in
- Material Sintered Steel or Ductile Iron
- Mounting Type Conventional

Features
- Solid Flange & Double Split Barrel - Assures better concentricity to the shaft.
- 3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Products specifications

Manufacturer	Browning
