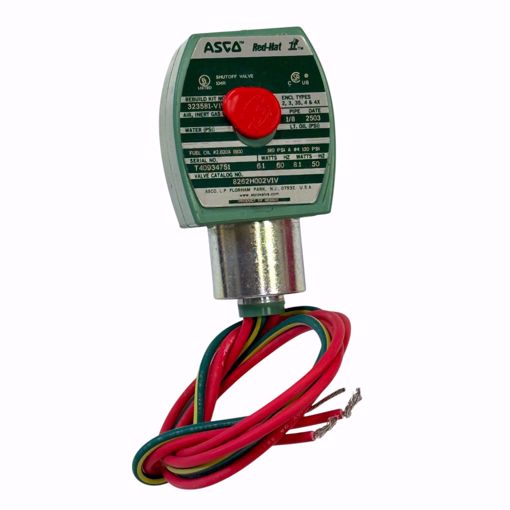

40857S CARLIN 2-WAY INSTANT OIL VALVE FOR 201/301/601/702 CRD

Manufacturer: Carlin

40857S CARLIN 2-WAY INSTANT OIL VALVE FOR 201/301/601/702 CRD ASCO RED HAT VALVE 8262H002V1V - 1/8" Pipe Size - 120V/ 60Hz - 110V / 50Hz - 180/ 120 PSI - 6.1 Watts @ 60 Hz - 8.1 Watts @ 60 Hz - Fuel Oil #2, B20 & B100 - Brass Body - 2- Way - 0.35 Cv - 2/2 Normally Closed Features - Welded core tube provides higher pressure ratings - Reliable, proven design with high flows - Small poppet valves for tight shutoff - Wide range of elastomers for specialty service applications - Mountable in any position - Tapped mounting holes in body standard ASCO 8262H002 is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, and cryogenic fluids.

SKU: CARLIN:40857S

Product Availability: 2

$178.52

This product must be purchased in increments of 1

Qty:

i h

40857S CARLIN 2-WAY INSTANT OIL VALVE FOR 201/301/601/702 CRD

ASCO RED HAT VALVE 8262H002V1V
- 1/8" Pipe Size
- 120V/ 60Hz
- 110V / 50Hz
- 180/ 120 PSI
- 6.1 Watts @ 60 Hz
- 8.1 Watts @ 60 Hz
- Fuel Oil #2, B20 & B100
- Brass Body
- 2- Way
- 0.35 Cv
- 2/2 Normally Closed

Features
- Welded core tube provides higher pressure ratings
- Reliable, proven design with high flows
- Small poppet valves for tight shutoff
- Wide range of elastomers for specialty service applications
- Mountable in any position
- Tapped mounting holes in body standard

ASCO 8262H002 is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, and cryogenic fluids.

Products specifications

Used in	Carlin 601CRD
Used in	Carlin 702CRD
Used in	702G/0 BURNERS
Manufacturer	Carlin
