CARLIN 42230 OIL PRIMARY CONTROL- 4 WIRE BLK BLU

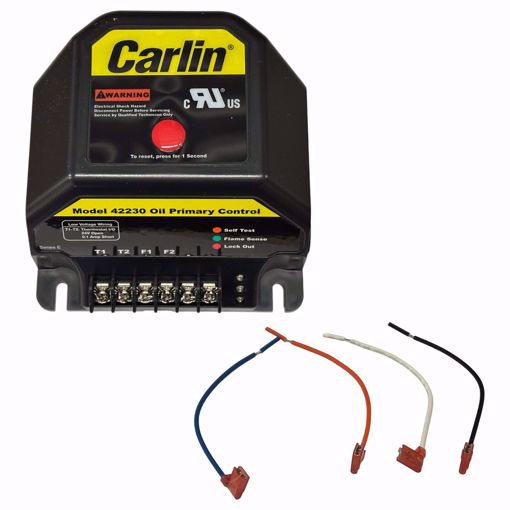

Carlin 4223002S Oil Burner Primary Control 30 Sec. TFI. Interrupted Duty
4223002S
The Carlin 42230 is a recycle type electronic control which provides interrupted duty operation. It is designed to mount directly on top of standard flame retention oil burners.
Oil pump bleed assist (up to 1 min), Diagnostic LED s (status, lockout, flame), Recycle on flame failure, Serviceman reset protection (latch-up after 3 consecutive lockouts), Thermostat and aquastat compatible, Increased flame accuracy, Improved SMC technology (zero bleed voltage during standby), Flame stabilize, Works well with generators (insensitive to frequency changes).
Power Input 120 vac, 60 HZ, 10 VA
Ignitor Load 120 vac, 60 HZ , 500 VA
Motor Load 10 FLA / 60 LRA
Cad cell resistance (with flame) R < 1500 ohms
Operating temperatures - +32 F to 140 F
Storage Temperature Limits -40°F to +185°F
UL recognized (US & Canada)
Carlin 4• Interrupted duty ignition
• LED indicators
• Recycle on flame failure
• Serviceman reset protection
• Pump prime
• SMC technology
4223002S Oil Burner Primary Control 30 Sec. TFI. Interrupted Duty Features & Benefits Interrupted Duty Ignition 30-Second Tiral for Ignition 42230 (1.3 second flame failure respone time (FFRT) Recycle on flame Failure Thermostat/aquastat Compatible SMC (Safety Monitoring Curcuit) Technology Power Input (From Limit Circuit) 120 vac, 60 Hz, 10 VA Motor Load 10 FLA, 60 LRA Ignitor Load 120 vac, 60 Hz, 500 VA Operating Temperature Limits +32°F to +140°F Storage Temperature Limits -40°F to +185°F Thermostat Anticipator Current 0.2 A, AC Cad Cell Resistane with Flame R < 1500 OHMS Replaces Carlin 42230, 42230-02S 42230-02A & 4223002A, Sid Harvey R75-45, Clean Burn 33400, CleanBurn 33400, Reznor 208973, (Obsolete Models) CleanBurn 33192, 33137 and 33188, Clean Burn 33192, 33137 and 33188
