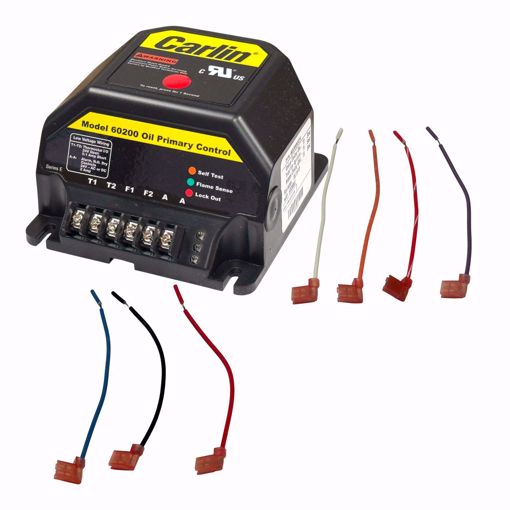

⚡ CARLIN 6020002S – Interrupted Duty Oil Primary Control (15 Pre / 15 TFI / 15 Post)
🔍 Product Overview
The Carlin 6020002S (also known as 60200-02S) is a universal interrupted duty oil primary control designed for dependable, safe operation of oil burners.
This advanced control features a 15-second pre-purge, 15-second trial for ignition (TFI), and 15-second post-purge, ensuring cleaner starts and shutdowns for maximum burner efficiency and safety.
Equipped with alarm contacts, diagnostic LEDs, and serviceman reset protection, the 6020002S simplifies troubleshooting while preventing unsafe operation after repeated lockouts.
Built with SMC (Safety Monitoring Circuit) technology, this control continuously checks system performance to maintain reliable flame detection and consistent ignition.
✅ Key Features
✔️ Interrupted duty ignition for longer ignitor life
✔️ Pre-purge, ignition trial, and post-purge timing: 15 seconds each
✔️ Automatic recycle on flame failure
✔️ Serviceman reset protection after 3 consecutive lockouts
✔️ Diagnostic LED indicators for fast troubleshooting
✔️ Safety Monitoring Circuit (SMC) for enhanced system safety
✔️ Thermostat and aquastat compatible
✔️ Alarm contacts (24V) for external system monitoring
✔️ Quick 1.3-second flame failure response time (FFRT)
✔️ Designed for 120V, 60Hz oil burner systems
⚙️ Technical Specifications
| Specification | Details |
|---|
| Model |
6020002S / 60200-02S |
| Ignition Type |
Interrupted Duty |
| Power Input (Red/White Wire) |
120 VAC, 60 Hz, 9 VA |
| Limit Circuit Input (Black Wire) |
120 VAC, 60 Hz |
| Motor Load |
10 FLA, 60 LRA |
| Ignitor Load |
120 VAC, 60 Hz, 500 VA |
| Valve Load |
120 VAC, 60 Hz, 0.3 A |
| Alarm Contacts |
24V AC/DC, 2 A |
| Pre-Purge Time |
15 Seconds |
| Trial for Ignition (TFI) |
15 Seconds (Optional 30s Version Available) |
| Motor Delay Off (Post-Purge) |
15 Seconds |
| Recycle on Flame Failure |
Yes |
| Flame Failure Response Time (FFRT) |
1.3 Seconds |
| Operating Temperature Range |
+32°F to +140°F |
| Storage Temperature Range |
-40°F to +185°F |
| Cad Cell Resistance (with flame) |
< 1500 Ohms |
| Thermostat Anticipator Current |
0.1A AC |
| Safety Technology |
SMC (Safety Monitoring Circuit) |
| Mounting |
Standard 4x4 Box |
| Application |
Residential & Light Commercial Oil Burners |
🔄 Cross Reference Table
| Manufacturer / Brand | Equivalent / Replacement Models |
|---|
| Carlin |
6020002S, 60200-02S, 60200, 60200-02S-010010, 6020002-S |
| Weil-McLain |
643-900-317, 643900317 |
| Other References |
Universal fit for most interrupted duty oil burners with 120V primary control wiring |
⚠️ Common Symptoms of a Failing Primary Control
If you notice these issues, your control may need replacement:
-
🔸 Burner fails to start or locks out repeatedly
-
🔸 No spark during ignition trial period
-
🔸 Flame detected but burner shuts down early
-
🔸 Alarm or reset light constantly illuminated
-
🔸 Inconsistent ignition or delayed startup
-
🔸 Ignitor remains energized continuously (no cutoff)
❓ (FAQ) Frequently Asked Questions
Q: What’s the difference between interrupted and intermittent ignition?
A: Interrupted ignition de-energizes the ignitor after the flame is established, extending the ignitor’s lifespan.
Q: Can I use this control on any 120V oil burner?
A: Yes — it’s compatible with most standard 120V oil burners equipped with a cad cell flame sensor.
Q: Does this unit recycle after flame failure?
A: Yes, it automatically recycles after a flame failure for safer restart operation.
Q: What does the alarm contact do?
A: The 24V alarm contact can trigger a remote alarm or system monitor in the event of lockout.
🛒 Shopping Tips
-
✅ Confirm ignition type — this is an Interrupted Duty control.
-
✅ Ensure your burner uses a cad cell sensor for flame detection.
-
✅ Check mounting compatibility (standard 4x4 box).
-
✅ Replace if unit fails to reset or LED indicates multiple lockouts.
-
✅ For safety, installation should be handled by a qualified technician.
