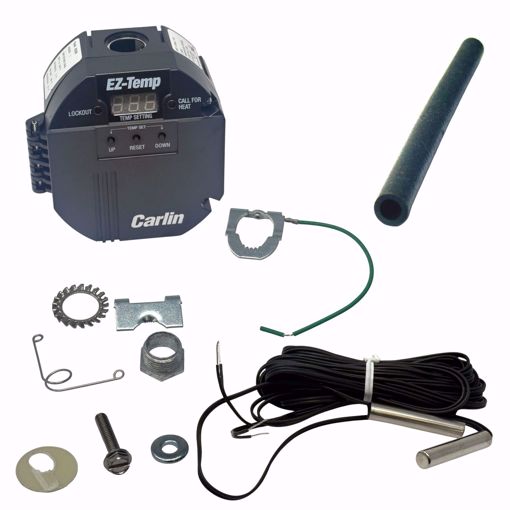

90300B1S CARLIN DUAL LIMIT TEMP CONTROL WITH MANUAL RESET
Input 120VA, 11VA
Temp Setpoint Range
- 100 to 180 F
- Differential 8 F
High Limit 200 F
- Differential 10 F
Loads: Temperature Control
- 10 Amp Full load
- 60 Amp Locked Rotor
Features
• Dynamic Display shows temperature setting and error codes.
• Navigation buttons allow for easy transition of EZ-Temp modes and settings.
• LEDs to indicate Lockout/Latchup and Call for Heat.
• Individual, dual and triple sensor options
• Smart Manual Reset allows for manual reset only if operating limit doesn’t open
Carlin 90300B1S EZ-Temp Dual Limit Temperature Control With Manual Reset For Bock Commercial Bock Commercial Recommended Temperature Range Service Pak – Dual limit (operating limit and manual reset high limit) for direct fired commercial storage water heaters (and similar applications). Includes temperature control only. Replacement for Carlin Model 90100BL1S. UL Recognized Temp Limit (F) 100°-180° 8° Diff. High Limit (F) 200° 10° Diff Can Be Used To Replace Honeywell L4080B & L8100C Controls
