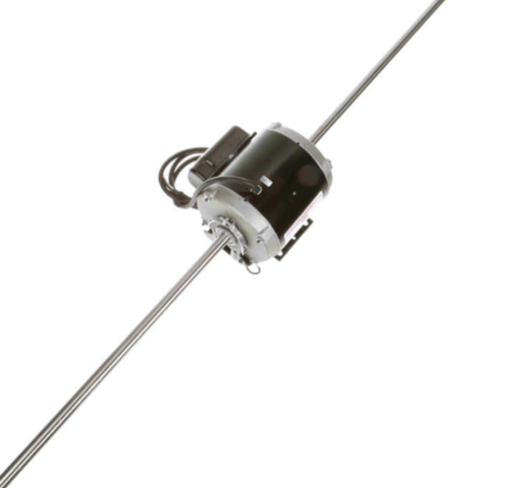

⚙️ C034 CENTURY MOTORS 1/6HP 115V 800RPM 56Z FRAME MOTOR
The C034 Century Motors 1/6HP 115V 800RPM motor is a reliable, high-performance HVAC motor designed for a wide range of residential and commercial applications. Its durable construction and resilient base design make it ideal for replacement in ITT Nesbitt HVAC wall units, ceiling units, and other systems commonly found in schools, hotels, hospitals, auditoriums, and gymnasiums.
✅ Key Features
✅ 1/6 HP, 115V, 800 RPM motor – high efficiency for HVAC systems
✅ 56Z Frame with double shaft: 21-1/2" × 3/4" × 21-1/2"
✅ Resilient base with ball bearings for smooth, quiet operation
✅ Permanent Split Capacitor (PSC) for reliable start and run
✅ 8-pole motor providing consistent performance
✅ Automatic overload protection
✅ Class A insulation for extended motor life
✅ Cushion base for vibration absorption
✅ Direct replacement for ITT Nesbitt HVAC wall and ceiling units
📊 Specifications
| Attribute | Detail |
|---|
| Model / Part Number |
C034 |
| Horsepower |
1/6 HP |
| Voltage |
115V |
| Frequency |
60 Hz |
| RPM |
800 |
| Amperage |
3.0 Amps |
| Frame |
56Z |
| Shaft |
Double shaft, 21-1/2" × 3/4" × 21-1/2" |
| Mounting |
Resilient/Cushion Base |
| Bearings |
Ball Bearings |
| Insulation Class |
A |
| Overload Protection |
Automatic |
| Type |
Permanent Split Capacitor (PSC) |
| Poles |
8 |
| Application |
ITT Nesbitt HVAC wall units, ceiling units, schools, hotels, hospitals, auditoriums, gymnasiums |
⚠️ Common Symptoms Indicating Replacement
-
Motor fails to start or runs intermittently
-
Excessive noise or vibration during operation
-
Overheating or tripping overload protection
-
Reduced airflow in HVAC unit
-
Burnt smell or visible wear on motor components
❓ Frequently Asked Questions
Q: What is the motor used for?
A: Replacement in ITT Nesbitt HVAC wall and ceiling units found in schools, hotels, hospitals, auditoriums, and gymnasiums.
Q: What are the electrical requirements?
A: 115V, 60 Hz, drawing 3.0 Amps.
Q: What type of motor is it?
A: Permanent Split Capacitor (PSC), 8-pole motor with automatic overload protection.
Q: What type of mounting does it have?
A: Resilient/cushion base for vibration absorption and quiet operation.
Q: What size is the shaft?
A: Double shaft, 21-1/2" × 3/4" × 21-1/2".
🛒 Shopping Tips
-
Confirm compatibility with your HVAC unit’s frame and shaft dimensions.
-
Ensure the motor matches the voltage, frequency, and horsepower requirements of your system.
-
Inspect the old motor for wear patterns to ensure proper replacement fit.
-
Only use genuine or compatible replacement motors to maintain performance and warranty.
