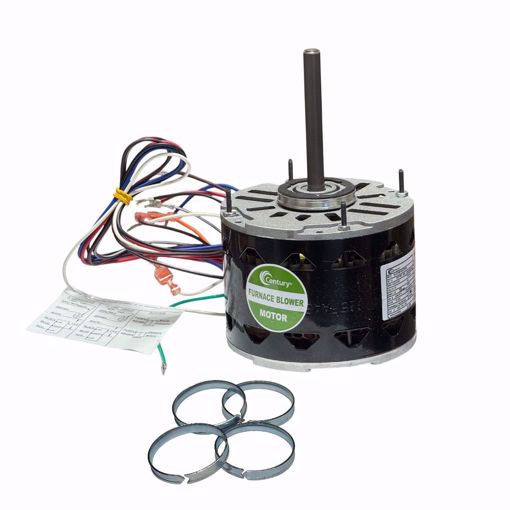

Century DL1026 Blower Motor – 1/4 HP, 115V, 1075 RPM, 48Y Frame
The Century DL1026 Blower Motor (Model 5KCP39FGDD705S) delivers reliable performance, quiet operation, and long service life for a wide range of HVAC systems. Designed as a universal replacement, this motor ensures dependable performance and easy installation in heating and air conditioning applications.
✅ Key Features
✅ 1/4 HP, 1075 RPM motor – dependable performance for HVAC blower systems
✅ 115V, single-phase, 60Hz – easy installation with standard wiring
✅ 3-speed motor – allows flexible airflow control
✅ Reversible rotation (CW/CCW) – adaptable for multiple blower configurations
✅ Ball bearing design – smooth, quiet, and long-lasting operation
✅ Open vented enclosure – promotes efficient cooling
✅ 48Y frame with 1/2" x 4.5" flat shaft – standard size for universal fit
✅ Includes 5 MFD / 370 VAC capacitor – ready for immediate use
✅ Ideal for furnaces, air handlers, and HVAC systems
📊 Specifications
| Feature | Specification |
|---|
| Part Number |
DL1026 |
| Manufacturer |
Century Motors |
| Model |
5KCP39FGDD705S |
| Horsepower |
1/4 HP |
| Voltage |
115V |
| Phase |
1 |
| Frequency |
60 Hz |
| Amperage |
4.5 A |
| Speed |
1075 RPM (3-Speed) |
| Frame |
48Y |
| Shaft Size |
1/2" x 4.5" Flat |
| Rotation |
Reversible (CW/CCW) |
| Enclosure |
Open |
| Bearing Type |
Ball |
| Ambient Temperature |
40°C / 104°F |
| Capacitor |
5 MFD / 370 VAC |
🔄 Direct Replacement For
| Manufacturer | Model Number |
|---|
| Century (Formerly A. O. Smith) |
FDL6001 |
| Packard |
43583 |
| Century |
130 |
| Other Equivalents |
S88-537, 1863 |
This motor is engineered to directly replace the models above — no wiring changes or mounting modifications required in most applications.
⚠️ Common Symptoms of Motor Failure
If your system shows any of these issues, it may be time to replace the blower motor:
-
HVAC fan not spinning or only humming
-
Motor overheating or tripping circuit breakers
-
Inconsistent or slow fan speed
-
Excessive vibration or grinding noises
-
Burned wiring, capacitor failure, or visible wear
❓ Frequently Asked Questions (FAQ)
Q: Is the DL1026 rotation reversible?
A: Yes, it supports both clockwise (CW) and counterclockwise (CCW) rotation.
Q: What capacitor does this motor require?
A: It includes or uses a 5 MFD / 370 VAC capacitor.
Q: What applications is this motor suited for?
A: It’s ideal for residential and light commercial HVAC systems, including furnaces, air handlers, and blower assemblies using 48Y frame motors.
Q: Can this replace S88-537 or 1863 models?
A: Yes, and it also replaces FDL6001, 43583, and 130 directly.
🛒 Shopping Tips
-
✅ Always match HP, voltage, and RPM before ordering
-
✅ Check shaft size and frame for correct fit
-
✅ Replace the capacitor when installing a new motor
-
✅ Verify rotation and wiring connections before startup
