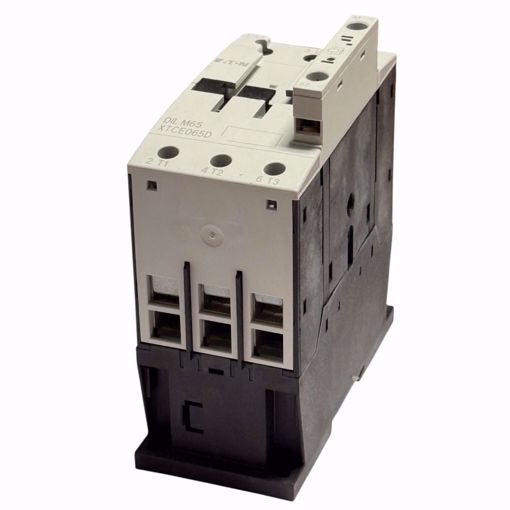

XTCE065D00TD CUTLER HAMMER 65A,24-27VDC,0NO-0NC CONTACTOR

XTCE065D00TD CUTLER HAMMER 65A,24-27VDC,0NO-0NC CONTACTOR - Coil Voltage 24-27V DC - 50/60 Hz - Maximum Voltage Rating 690V AC - 3 Poles - Main Power Pole Contact Form 3NO - Horsepower @ Single Phase - 120V AC5 hp - Horsepower @ Single Phase - 240V AC15 hp - Horsepower @ Three Phase - 208V AC20 hp - Horsepower @ Three Phase - 240V AC25 hp - Horsepower @ Three Phase - 480V AC50 hp - Horsepower @ Three Phase - 600V AC60 hp - Full Load Current - Inductive 65 A - Full Load Current - Resistive 98 A - Wire Termination Type: Screw - IP20 - Temp Range -13 to 122 F The XT ICE Series contactors use an electronic coil interface design that allows for flexibility in switching and greater reliability. These high-amperage contactors can be switched conventionally with full power to the coil, directly from a PLC output, or from a low-power command device. Low pickup and sealing power generates less heat and reduces the investment in control power transformers. The three switching tubes and electromechanical drive system of the XT 580–2600A contactors are arranged in an extremely compact design. This allows for smaller switchgear dimensions, while switching higher currents—up to 2600A.The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. The XT line of IEC motor control is not the same as traditional motor control designs. XT was designed to be engineered better.
