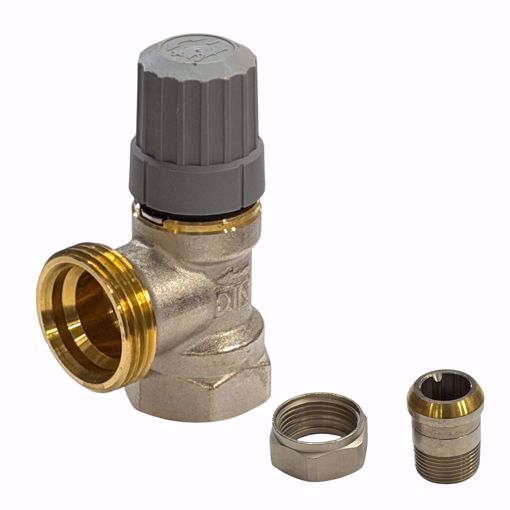

013G8019 Danfoss RA 2000 – 3/4" Angle Thermostatic Radiator Valve Body

Product Overview

The Danfoss 013G8019 RA 2000 3/4" Angle Valve Body is a high-quality thermostatic radiator valve body designed for hot water and low-pressure steam systems. Built with a nickel-plated body and a sturdy EPDM valve disc, it delivers reliable, leak-free performance. The valve features a 3/4" inlet (FPT) and 3/4" outlet MNPT union tailpiece, with an adjustable temperature range of 45–85°F.

RA 2000 valves include a replaceable packing gland assembly with a grease cup to keep the o-ring lubricated for life. A plastic installation cap protects the valve pushpin and allows manual control during installation, and a separate hand knob is available for full manual operation. The valve remains normally open without an operator mounted and conforms to ASHRAE / ANSI Standard 102-1983.

Note: The RA 2000 operator (013G8250) must be purchased separately.

✅ Key Features

• ✔️ 3/4" angle valve body for radiator, baseboard, or convector installation

• ✔️ Inlet: 3/4" FPT / Outlet: 3/4" MNPT union tailpiece

• ✔️ Flow coefficient: 2.7 Cv for efficient flow control

• ✔️ Hot water & low-pressure steam compatible

• ✔️ Max working pressure: 145 psi (10 bar)

• ✔️ Differential pressure range: max 15 psi

• ✔️ Max temperature: 250°F

• ✔️ Max sensor temperature: 140°F

• ✔️ Nickel-plated construction for durability and corrosion resistance

• ✔️ Replaceable packing gland assembly with grease cup for long-lasting lubrication

• ✔️ Sturdy EPDM rubber valve disc provides a reliable seal

• ✔️ Plastic installation cap included for pushpin protection and temporary manual operation

• ✔️ Optional hand knob available for full manual control

• ✔️ Valve remains normally open when no operator is mounted

• ✔️ Dial adjustable 45–85°F for comfortable temperature control

• ✔️ Conforms to ASHRAE / ANSI Standard 102-1983

• ✔️ Series: RA 2000

📊 Specifications

⚠️ Common Symptoms

• Radiators or baseboards not heating evenly

• Valve leaking around body or tailpiece

• Valve stuck fully open or closed

• Whistling, hissing, or hammering in the system

• Reduced heating efficiency

• Temperature not responding to dial adjustment

❓ Frequently Asked Questions (FAQ)

Q: Can this valve be used for both hot water and steam systems?
A: Yes, it’s designed for hot water and low-pressure steam.

Q: Does this valve include the thermostatic operator?
A: No. The RA 2000 operator (013G8250) must be purchased separately. Manual operation is possible during installation using the plastic cap, and full manual operation requires a hand knob accessory.

Q: How do I adjust the temperature?
A: Turn the dial numbered 1–5, clockwise or counterclockwise. This corresponds to an adjustable temperature range of 45–85°F for precise comfort.

Q: What is the packing gland and grease cup for?
A: The replaceable packing gland assembly can be serviced while the system is in operation, and the grease cup keeps the o-ring packing lubricated for life.

Q: Does the valve remain open without an operator?
A: Yes, it remains normally open until an operator or hand knob is mounted.

🛒 Shopping Tips

• Confirm system type: hot water or low-pressure steam

• Ensure 3/4" NPT pipe connections

• Keep a hand knob accessory if full manual operation is desired

• Inspect MNPT union tailpiece for leaks before installation

• Suitable for residential or commercial radiators, baseboards, and convectors
