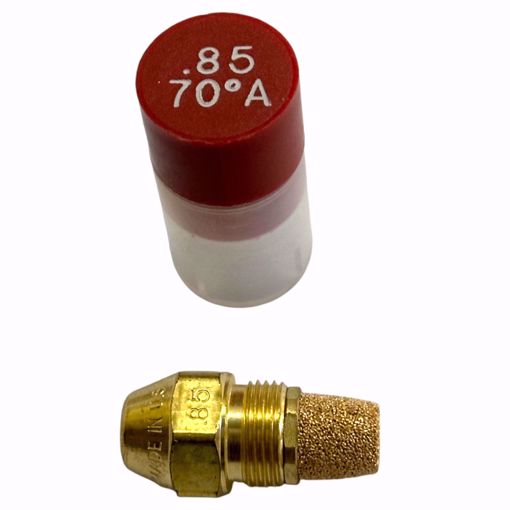

🔥 00085-70A1 DELAVAN 0.85 GPH 70°A HOLLOW CONE NOZZLE WITH SINTERED FILTER
The Delavan 00085-70A1 is a precision-engineered 0.85 GPH 70°A hollow cone oil burner nozzle, designed for efficient atomization and consistent combustion performance. Built with a sintered bronze filter, it ensures superior fuel filtration and long-lasting reliability in oil-fired heating equipment. Ideal for residential and light commercial burners requiring fine fuel spray and stable flame patterns.
✅ Key Features
💚 High-Precision Spray Design – 0.85 GPH flow rate at 100 PSI for accurate fuel delivery.
💚 Hollow Cone Pattern (Type A) – Provides fine atomization for clean, efficient combustion.
💚 70° Spray Angle – Optimized for specific burner head configurations.
💚 Integrated Sintered Bronze Filter – Filters impurities to protect the nozzle and maintain spray quality.
💚 Durable Construction – Machined brass body and stainless-steel internals for long service life.
💚 Consistent Performance – Delivers stable combustion with reduced smoke and soot.
💚 Interchangeable Fit – Compatible with a wide range of standard oil burners.
📊 Technical Specifications
| Specification | Detail |
|---|
| Part Number |
00085-70A1 |
| Manufacturer |
Delavan |
| Flow Rate |
0.85 GPH (at 100 PSI) |
| Spray Angle |
70° |
| Spray Pattern |
Hollow Cone (Type A) |
| Filter Type |
Sintered Bronze |
| Fuel Type |
No. 1 and No. 2 Fuel Oil, Kerosene |
| Material |
Brass body with stainless-steel components |
| Application |
Residential and light commercial oil burners |
⚠️ Common Symptoms / When to Replace
Replace the nozzle if you experience:
🔥 Poor combustion or irregular flame shape.
🔥 Soot buildup on the burner head or in the combustion chamber.
🔥 Reduced heating efficiency or higher fuel consumption.
🔥 Uneven spray pattern or delayed ignition.
🔥 Frequent filter clogs or fouling from fuel impurities.
❓ Frequently Asked Questions (FAQ)
Q: What does “A” mean in the nozzle number?
A: “A” indicates a Hollow Cone spray pattern for fine atomization and efficient mixing with air.
Q: Can I replace this with a solid cone nozzle?
A: Only if your burner’s design allows. Always follow the burner manufacturer’s recommended spray pattern and angle.
Q: How often should I replace the nozzle?
A: Typically once per heating season, or sooner if fuel quality is poor or performance declines.
Q: What is the function of the sintered filter?
A: It traps fine particles and prevents clogging, ensuring consistent spray and long nozzle life.
🛒 Shopping Tips
🧭 Match flow rate (GPH) and spray angle to your burner’s specifications.
🔄 Spray Pattern Codes:
-
“A” = Hollow Cone (fine atomization, light oils)
-
“B” = Solid Cone (higher capacity, heavier oils)
-
“W” = Semi-Solid Cone (balanced performance)
✅ Always ensure you’re selecting the correct pattern for your application.
✔ Replace your nozzle annually for optimal performance and safety.
✔ Handle carefully — avoid touching the spray orifice to prevent damage.
✔ Keep spare nozzles on hand for quick maintenance and seasonal tune-ups.
