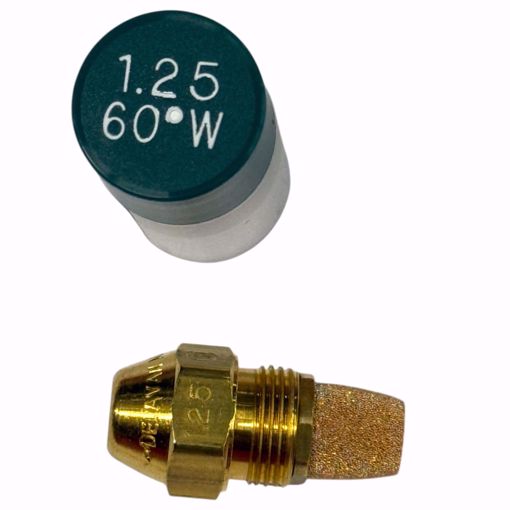

🔥 00125-60W1 DELAVAN 1.25 GPH 60°W SEMI-SOLID CONE NOZZLE WITH SINTERED FILTER
The Delavan 00125-60W1 is a high-quality 1.25 GPH 60°W semi-solid cone oil burner nozzle, engineered for reliable combustion and consistent atomization. Featuring a sintered bronze filter for superior fuel cleanliness, this nozzle is ideal for a wide range of residential and commercial oil burners. Its semi-solid (Type W) spray pattern provides balanced fuel distribution and stable flame performance under various operating conditions.
✅ Key Features
💚 1.25 GPH Flow Rate – Precisely rated at 100 PSI for accurate fuel delivery.
💚 Semi-Solid Cone Spray (Type W) – Combines features of both solid and hollow cone patterns for versatile combustion.
💚 60° Spray Angle – Designed for burners with medium spray coverage requirements.
💚 Built-In Sintered Bronze Filter – Protects against clogging and ensures consistent spray quality.
💚 Durable Brass & Stainless Construction – Built for long-term reliability in demanding burner environments.
💚 Efficient Combustion – Promotes clean burning with reduced smoke and soot output.
💚 Universal Fit – Compatible with most standard oil-fired burners.
📊 Technical Specifications
| Specification | Detail |
|---|
| Part Number |
00125-60W1 |
| Manufacturer |
Delavan |
| Flow Rate |
1.25 GPH (at 100 PSI) |
| Spray Angle |
60° |
| Spray Pattern |
Semi-Solid Cone (Type W) |
| Filter Type |
Sintered Bronze |
| Fuel Type |
No. 1 & No. 2 Fuel Oil, Kerosene |
| Material |
Brass body with stainless-steel components |
| Application |
Residential and commercial oil burners |
⚠️ Common Symptoms / When to Replace
Replace your nozzle if you experience:
🔥 Irregular flame shape or unstable combustion.
🔥 Soot buildup in the burner chamber or flue.
🔥 Increased fuel use or reduced system efficiency.
🔥 Plugging or uneven fuel spray pattern.
🔥 Inconsistent burner ignition or short cycling.
❓ Frequently Asked Questions (FAQ)
Q: What does “W” mean in the nozzle number?
A: “W” identifies a Semi-Solid Cone spray pattern, offering a balanced atomization suitable for varied burner designs and firing rates.
Q: What is the best use case for a semi-solid cone nozzle?
A: It performs well in systems that benefit from both the fine atomization of hollow cones and the even coverage of solid cones.
Q: How often should the nozzle be replaced?
A: Typically once per heating season, or more frequently if fuel contamination or poor combustion occurs.
Q: What’s the benefit of the sintered filter?
A: It captures fine particles before they reach the nozzle tip, preventing blockages and ensuring consistent performance.
🛒 Shopping Tips
🧭 Match flow rate (GPH) and spray angle to your burner’s specifications.
🔄 Spray Pattern Codes:
-
“A” = Hollow Cone (fine atomization, light oils)
-
“B” = Solid Cone (steady, full spray for heavier oils)
-
“W” = Semi-Solid Cone (balanced for varied conditions)
✅ Always confirm your system’s required spray pattern and angle before replacement.
✔ Replace your nozzle annually or during routine maintenance.
✔ Handle the nozzle carefully—avoid touching the spray tip.
✔ Keep spare nozzles on hand for quick maintenance and seasonal service.
