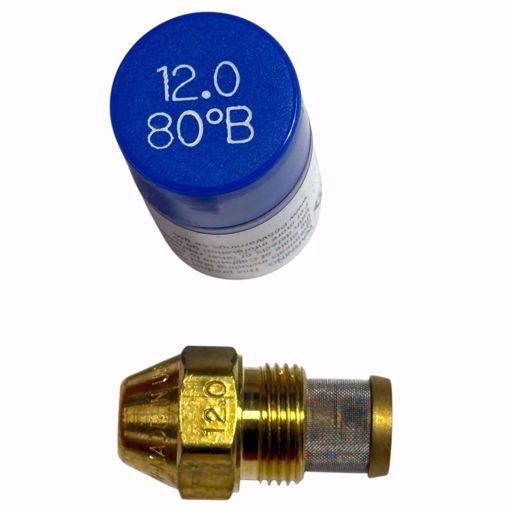

🔥 01200-80B7 DELAVAN 12.00 GPH 80°B SOLID CONE NOZZLE WITH MESH STRAINER
The Delavan 01200-80B7 is a high-capacity 12.00 GPH 80°B solid cone oil burner nozzle, built for heavy-duty commercial and industrial applications. Its mesh strainer ensures effective fuel filtration and consistent atomization even under high flow conditions. Engineered for precision fuel delivery, this nozzle provides powerful, stable combustion and long-lasting reliability in large oil-fired heating systems.
✅ Key Features
💚 High Flow Capacity – 12.00 GPH for large commercial or industrial burner systems.
💚 Solid Cone Spray (Type B) – Produces uniform fuel distribution and a strong, stable flame pattern.
💚 80° Spray Angle – Designed for burners requiring broad flame coverage and optimal combustion.
💚 Integrated Mesh Strainer – Filters larger fuel particles for protection and extended nozzle life.
💚 Precision Machined Components – Brass body and stainless-steel internals for superior durability.
💚 Reliable Performance – Maintains consistent spray and combustion at high firing rates.
💚 Designed for Heavy-Duty Use – Ideal for large boilers, furnaces, and commercial heating equipment.
📊 Technical Specifications
| Specification | Detail |
|---|
| Part Number |
01200-80B7 |
| Manufacturer |
Delavan |
| Flow Rate |
12.00 GPH (at 100 PSI) |
| Spray Angle |
80° |
| Spray Pattern |
Solid Cone (Type B) |
| Filter Type |
Mesh Strainer |
| Fuel Type |
No. 1 & No. 2 Fuel Oil, Kerosene |
| Material |
Brass body with stainless-steel components |
| Application |
Commercial & industrial oil burners, high-capacity systems |
⚠️ Common Symptoms / When to Replace
Replace your nozzle if you notice:
🔥 Irregular or unstable flame pattern.
🔥 Excessive smoke, soot, or incomplete combustion.
🔥 Fluctuating fuel pressure or poor atomization.
🔥 Nozzle tip clogging or visible wear.
🔥 Increased fuel usage or reduced system efficiency.
❓ Frequently Asked Questions (FAQ)
Q: What does “B” mean in this nozzle model?
A: The “B” indicates a Solid Cone spray pattern, ideal for delivering full, even combustion in higher-flow burners.
Q: What is the purpose of the mesh strainer?
A: The mesh strainer traps larger fuel particles, preventing blockages and extending nozzle service life — particularly important in high-volume systems.
Q: Can I use this in smaller residential burners?
A: No. This nozzle is designed for high-capacity commercial or industrial burners due to its 12.00 GPH flow rate.
Q: How often should I replace it?
A: Replace annually or sooner if fuel quality is poor or you observe performance issues.
🛒 Shopping Tips
🧭 Match flow rate (GPH) and spray angle to your burner’s design requirements.
🔄 Spray Pattern Codes:
-
“A” = Hollow Cone – fine atomization for light oils.
-
“B” = Solid Cone – full-bodied spray for heavier oils or high firing rates.
-
“W” = Semi-Solid Cone – balanced for mixed conditions.
✅ Always confirm your nozzle type and angle before replacement to ensure proper combustion.
✔ Replace nozzles during annual maintenance for consistent burner performance.
✔ Handle carefully — never touch or clean the spray tip with sharp tools.
✔ Keep spares available, especially for high-demand commercial systems.
