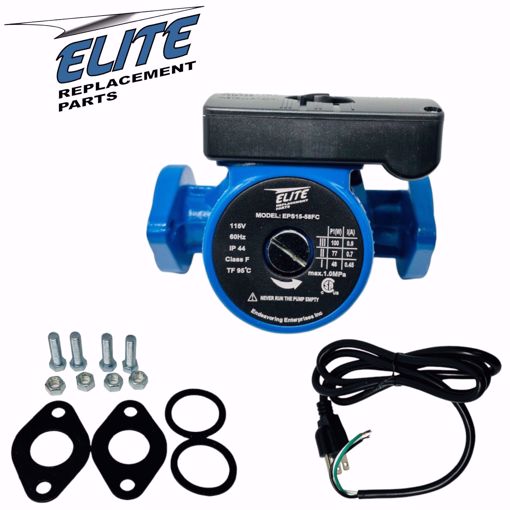

EPS15-58FC Elite Circulator Pump – 115V, 3-Speed with Check Valve
The EPS15-58FC Elite Circulator Pump is a versatile, reliable solution for hydronic and radiant heating systems. Designed for quiet operation and built with durability in mind, this pump comes complete with all the essentials for a quick replacement, including gaskets, nuts, bolts, optional line cord, and a built-in check valve.
✅ 3-Speed flexibility for multiple system requirements
✅ Built-in check valve for reliable performance
✅ Includes O-ring gaskets, full face gaskets, nuts, bolts & optional cord
✅ Designed for radiant, hydronic, solar, and fan coil heating systems
✅ Quiet operation – ideal for sound-sensitive installations
✅ CSA listed for quality and safety assurance
⚠️ Not for use with domestic potable water.
📊 Technical Specifications
| ✅ Specification | ✅ Details |
|---|
| Power Rating |
1/25 HP |
| Voltage |
115V, Single Phase |
| Full Load Current |
0.9 Amp |
| Pump Body Material |
Cast Iron |
| Flange-to-Flange Dimension |
6-3/8" |
| Inlet/Outlet |
Flanged |
| High Speed Performance |
10 GPM @ 19 Ft Head |
| Medium Speed Performance |
6 GPM @ 13 Ft Head |
| Low Speed Performance |
4 GPM @ 6 Ft Head |
🔄 Replacement Compatibility
This pump can replace:
-
Bell & Gossett: SLC-25, SLC-30, 103201, 103203, 103253
-
Weil-McLain: 511-405-118, 103253
-
Grundfos: UPS15-42F, UPS20-42F, 59896178, UPS15-42F, UPS15-58FC, 59896341, UP15-42F
⚙️ Related Parts (Sold Separately)
-
Flanges:
-
EN519601 – 3/4"
-
EN519602 – 1"
-
EN519603 – 1-1/4"
-
EN519604 – 1-1/2"
