ER1003 ERP MODULE, IGNITION
ER1003 Honeywell S8610U1000 Furnace Ignition Module
- 24V
- 50/60Hz
- Pilot Valve 1 Amp Max
- Main Valve 2 Amp Max
- Operating Current 0.2 Amp
- Wiring Connections 1/4" Male Spade
- Temp Range -40 to 170 F
- Pre-Purge Time 1 Sec Max
- Trial For Ignition 90 Sec then 100 % shutoff (pilot & main gas)
- Continuous Retry 5 min delay if pilot fails to light during trial for ignition
- Flame Failure Response Time 2 Sec Max
- Min flame Current Required 0.15 micro amps

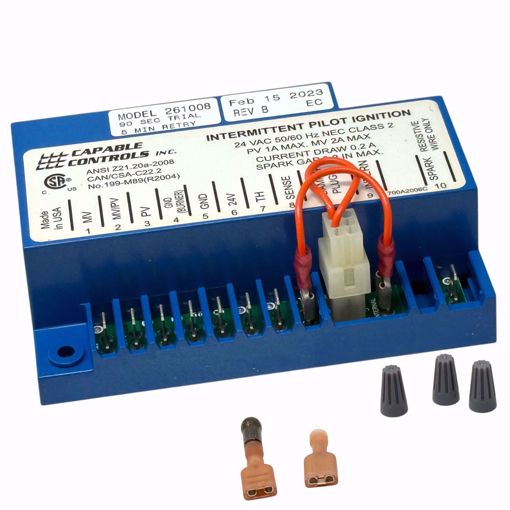

The model 261008 Universal Intermittent Pilot Ignition Control is a microprocessor-based ignition control. The microprocessor provides reliable software control of all timings and operates a diagnostic led. It is designed for indirect burner ignition and supervision and can be used with all gases. It provides ignition sequence, flame monitoring, and safety shutout for intermittent pilot boilers, furnaces and other heating appliances.
Replaces Honeywell #S8610U1003.
