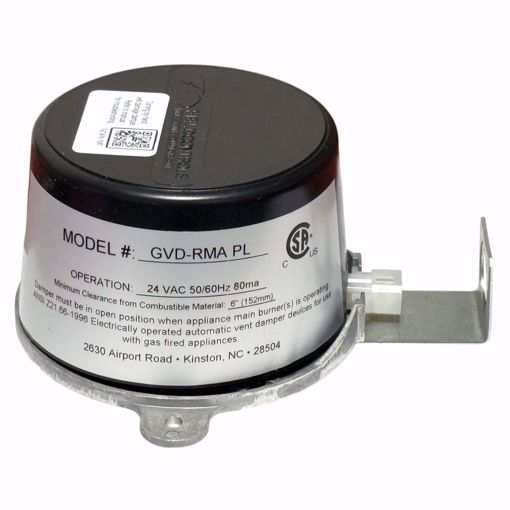

46491600 FIELD CONTROLS GMA-PL / GVD-RMA PL VENT DAMPER MOTOR ASSEMBLY – PLASTIC BASE
The Field Controls 46491600 GMA-PL (Model GVD-RMA PL) is a replacement vent damper motor assembly designed for all Field Controls GVD series gas vent dampers. Built with a durable plastic base, this 24-volt motor provides reliable power-open / power-close operation for increased efficiency and safer venting performance on gas-fired heating equipment.
Designed to meet ANSI Z21.66-1996 standards, this motor assembly helps improve appliance efficiency by reducing standby heat loss while ensuring proper combustion venting.
⚙️ Key Features
✅ Direct replacement for all Field Controls GVD Gas Vent Dampers
✅ Durable plastic base design
✅ 24V, 50/60Hz, 80 mA operation
✅ Power open / power close motor
✅ 15-second opening time and 15-second closing time
✅ Helps reduce standby heat loss and improves venting efficiency
✅ Meets ANSI Z21.66-1996 safety standard
✅ Minimum clearance from combustibles: 6" (152 mm)
✅ Low power draw: 3W at 24 VAC
📊 Specifications
| Attribute | Details |
|---|
| Part Number |
46491600 |
| Model Number |
GMA-PL / GVD-RMA PL |
| Application |
Gas Vent Dampers (Field Controls GVD Series) |
| Voltage |
24 VAC |
| Frequency |
50/60 Hz |
| Current Draw |
80 mA |
| Power Draw |
3 Watts when opening or closing |
| Operation |
Power Open / Power Close |
| Opening Time |
15 seconds |
| Closing Time |
15 seconds |
| Base Material |
Plastic |
| Minimum Clearance to Combustibles |
6" (152 mm) |
| Wiring Requirements |
24 VAC, 18-gauge, 105°C thermostat wire |
| Heat Anticipation Note |
Add 0.1 Amp to specified or measured circuit load |
| Standard Compliance |
ANSI Z21.66-1996 |
⚠️ Common Symptoms of a Failed Vent Damper Motor
🔥 Burner will not ignite
🔥 Vent damper stuck open or closed
🔥 Furnace or boiler short cycling
🔥 Error codes related to vent proving
🔥 Damper motor makes clicking or buzzing noises
🔥 Long heat-up times or poor draft performance
❓ Frequently Asked Questions (FAQ)
Q: Is this motor compatible with all GVD gas vent dampers?
A: Yes. The 46491600 GMA-PL / GVD-RMA PL is designed for all Field Controls GVD series dampers.
Q: What voltage does this motor assembly require?
A: It operates on 24V AC.
Q: Does the motor power both open and close?
A: Yes — it is a power open / power close design, each cycle taking about 15 seconds.
Q: What wire should I use for installation?
A: Use 24 VAC, 18-gauge, 105°C thermostat wire.
Q: How much clearance is needed from combustibles?
A: Minimum 6 inches (152 mm).
Q: Does this meet any safety standards?
A: Yes — it complies with ANSI Z21.66-1996.
🛒 Shopping Tips
✔️ Confirm your vent damper is a Field Controls GVD model.
✔️ Check your furnace/boiler uses a 24V vent damper motor.
✔️ Inspect wiring for 105°C thermostat wire before installation.
✔️ Replace the motor assembly at the first sign of sticking or delayed operation.
✔️ If the damper does not fully open/close within 15 seconds, the motor is likely failing.
