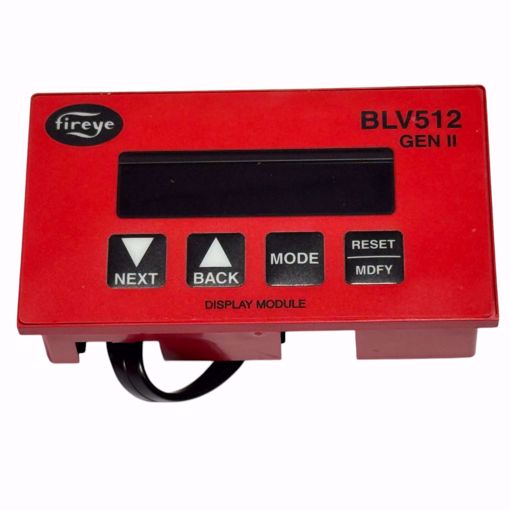

DISPLAY,2 LINES 16 CHAR.
VFD Display 2Line 16Chr w/Cable
DISPLAY,2 LINES 16 CHAR.
Features & Benefits:
- Change the factory default parameters stored in the programmer module
- Easily scroll through the various menus to view the current operating status
- Review programmer configuration and lockout history.
- Alpha-numeric display made up of 2 lines by 16 characters per line
- Available in either OLED (BLV512) or LCD (BLL510) formats
- OLED includes high brightness and extended temperature range to -40°F
- Contains a fully functional keypad
- Meets NEMA 4X, when mounted remotely using kits 129-178-4 or 129-178-8
Display modules for use with the Fireye BurnerLogiX control system
The BurnerLogiX system offers an optional OLED or liquid crystal (LCD) display that may be either plugged in or mounted remotely to give full language descriptors of current status and diagnostic lockout information.
The BurnerLogix system offers optional OLED and liquid crystal (LCD) displays that may be either
plugged in or mounted remotely to give full language descriptors of current status and diagnostic
lockout information.
In order to change the factory default parameters stored in the programmer module optional
keypad/display (BLV512 or BLL510) is required. All configurable parameters are stored within the
PROGRAM SETUP sub-menu. The keypad/display module provides tactile feedback keys that are
used to access the sub-menus inherent in the BurnerLogix system.
The optional alpha-numeric display is made up of 2 lines by 16 characters per line and is available in
either OLED or liquid crystal formats. The advantage of OLED is high brightness and extended
temperature range to -40°F. Both displays contain a fully functional keypad allowing the user to easily
scroll through the various menus to view the current operating status, review programmer
configuration, and lockout history.
When mounted remotely using kits 129-178-4 or 129-178-8, each display meets NEMA 4X
requirements
List of display of main menu items in BurnerLogiX:
- L1-3 OPEN current operating status
- BNR HOURS total hours terminal 7 (main fuel) is energized.
- BNR CYCLES total burner cycles.
- BNR LOCKOUTS total system lockouts.
- SYS HOURS total hours installed.
- PROGRAM SETUP > review and set program parameters.
- LOCKOUT HISTORY > last 10 lockouts with burner hour and cycle time stamp.
- SYSTEM INFO > view flame signal averages, M-D and M-8 status, select.
language, clear history feature.
Product Availability:
Out of stock
