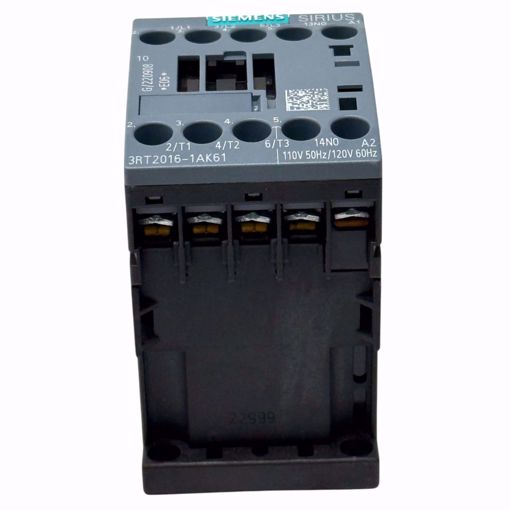

3POLE 120V 9AMP 1-N/O AUXCONT

Manufacturer: Furnas Controls

3RT2016-1AK61 FURNAS 3POLE 120V 9AMP 1-N/O AUXCONT - Series SIRIUS 3RT20 - Contactor Style IEC - Reversing Capability Non-Reversing - 3 Poles - Main Power Pole Contact Form 3NO - Includes Auxiliary Contacts Yes - Auxiliary Contacts Included 1NO - 3 Phase - Full Load Current - Inductive 9 Amps - Full Load Current - Resistive 22 Amps - 110/120V AC - 50/60 Hz - Nominal Coil Voltage @ 60Hz 120V AC - Maximum Voltage Rating 690V AC - IP Rating IP20 - Frame Size S00

SKU: FURNAS:3RT2016-1AK61

Product Availability: 1

$78.70

This product must be purchased in increments of 1

Qty:

i h

3RT2016-1AK61 FURNAS 3POLE 120V 9AMP 1-N/O AUXCONT

- Series SIRIUS 3RT20
- Contactor Style IEC
- Reversing Capability Non-Reversing
- 3 Poles
- Main Power Pole Contact Form 3NO
- Includes Auxiliary Contacts Yes
- Auxiliary Contacts Included 1NO
- 3 Phase
- Full Load Current - Inductive 9 Amps
- Full Load Current - Resistive 22 Amps
- 110/120V AC
- 50/60 Hz
- Nominal Coil Voltage @ 60Hz 120V AC
- Maximum Voltage Rating 690V AC
- IP Rating IP20
- Frame Size S00
