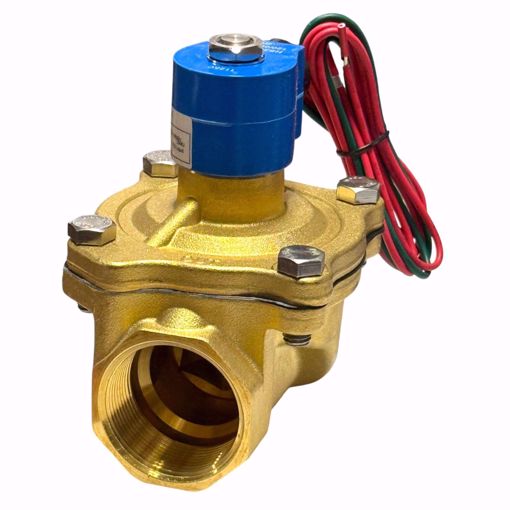

S211GF02N5HJ2 GC VALVES – 1.5" NORMALLY CLOSED SOLENOID VALVE (5–200 PSI AIR / 5–150 PSI WATER)
Heavy-duty brass solenoid valve designed for air, gas, water, light oil, and aggressive media applications.
The GC Valves S211GF02N5HJ2 is a high-performance 1-1/2" NPT, 2-way normally closed solenoid valve engineered for demanding commercial and industrial systems. This S21-Series valve provides exceptional flow with a 1-1/4" orifice and 25 Cv, offering reliable operation across a wide range of pressures and media types.
Built with a durable brass body, Nitrile seals, and a Class F coil, this valve is suitable for air, neutral gases, water, steam (low temp), and light oils. With approvals from UL, CSA, and CE, it meets the safety and reliability standards required in professional applications.
🚀 Key Features
-
🔒 2-Way Normally Closed design
-
🔧 1-1/2" NPT pipe size
-
💨 Handles 5–200 PSI Air/Gas
-
💧 Handles 5–150 PSI Water
-
🛢️ Light oil rated up to 85 PSI
-
🔥 Max fluid temperature: 180°F
-
⚡ 110/120V AC coil – 8W power consumption
-
🧊 Operating temperature range: 32°F to 125°F
-
📏 1-1/4" orifice delivering 25 Cv flow
-
🛠️ Vertical and upright mounting
-
🪛 24-inch lead wires
-
🧱 Brass body + Nitrile seals
-
📦 NEMA 4X coil housing for harsh environments
-
📑 UL, CSA & CE approvals
📊 Technical Specifications
| Category | Details |
|---|
| Part Number |
S211GF02N5HJ2 |
| Valve Series |
S21 |
| Function |
2-Way Normally Closed |
| Pipe Size |
1-1/2" NPT |
| Orifice Size |
1-1/4" |
| Cv Rating |
25 |
| Body Material |
Brass |
| Seal Material |
Nitrile |
| Voltage |
110/120 VAC |
| Power Consumption |
8 Watts AC |
| Coil Class |
Class F |
| Housing |
NEMA 4X, 1/2" Conduit |
| Lead Length |
24 inches |
| Operating Pressure – Air/Gas |
5–200 PSI |
| Operating Pressure – Water |
5–150 PSI |
| Light Oil Pressure |
Up to 85 PSI |
| Max Fluid Temperature |
180°F |
| Operating Temp Range |
32°F to 125°F |
| Valve Type |
Diaphragm |
| Media Compatibility |
Air, neutral gases, water, light oil, slightly aggressive media |
| Approvals |
CE, UL, CSA |
⚠️ Symptoms of a Failing Solenoid Valve
Common signs that the solenoid or internal components may need replacement:
-
⚠️ Valve fails to open or close
-
⚠️ Buzzing or loud humming from coil
-
⚠️ Overheating coil or burning smell
-
⚠️ System pressure not holding or reduced flow
-
⚠️ Leaks around diaphragm or body
-
⚠️ Valve sticking intermittently during operation
-
⚠️ Erratic cycling or delayed actuation
Replace the valve or coil if these symptoms persist.
❓ Frequently Asked Questions
Q: Can this valve be used with steam?
A: It can handle slightly aggressive media and low-temperature steam, but for high-temperature steam applications a different model is recommended.
Q: Is the coil waterproof?
A: Yes—NEMA 4X housing provides protection against dust, water spray, and corrosion.
Q: Can this valve be mounted horizontally?
A: No. It must be mounted vertical and upright for proper operation.
Q: Is this valve safe for natural gas?
A: Yes. It is approved for air and neutral gases up to 200 PSI.
Q: Does it come with a coil?
A: Yes, this part number includes the 120V AC coil.
🛒 Shopping Tips
-
Make sure your system requires a 1-1/2" NPT normally closed solenoid valve
-
Verify pressure requirements (Air/Gas: 200 PSI max, Water: 150 PSI max)
-
Ensure mounting orientation is vertical
-
Check fluid type (compatible with air, gas, water, light oil)
-
Confirm voltage: 110/120V AC
-
For continuous duty use, ensure coil cooling is adequate
