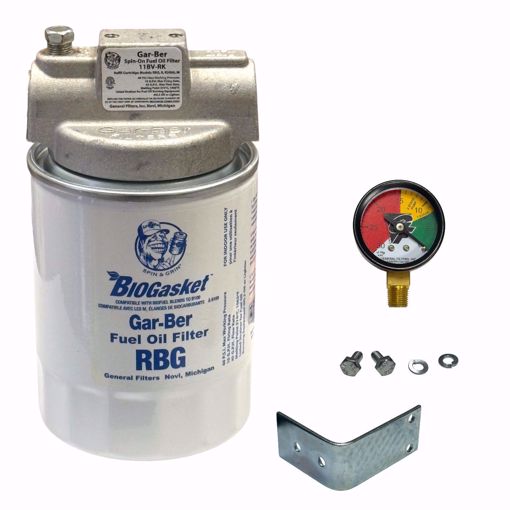

1603 GENERALAIRE GARBER 11BV-RK 11BVRK FILTER COMPLETE WITH MOUNT

1603 GENERALAIRE GAR-BER 11BV-RK FILTER COMPLETE WITH MOUNT 🔥

Includes Filter Restriction Indicator & Mounting Bracket

📘 Product Overview

The Generalaire 1603 (11BV-RK) Complete Spin-On Filter Kit offers reliable fuel filtration for oil-burning systems, ensuring clean, efficient operation.
This upgraded version of the standard 1600 model comes equipped with a Filter Restriction Indicator (FRI Gauge) and a galvanized mounting bracket, making maintenance simple and performance easy to monitor.

Built to handle biofuel blends up to B100, it features a rugged machined aluminum head and a #R epoxy-coated spin-on filter for long-lasting protection against dirt, sludge, and contaminants.

✅ Key Features

• ✅ Complete kit — includes filter, indicator gauge, and mounting bracket

• ✅ BIOGasket compatible with fuel blends up to B100

• ✅ Machined aluminum head for durability and corrosion resistance

• ✅ Built-in Filter Restriction Indicator (3610) monitors filter performance

• ✅ Galvanized bracket for stable mounting

• ✅ Replaces the standard 1600 model for added convenience

⚙️ Specifications – 1603 Complete Filter Assembly

3610 FILTER RESTRICTION INDICATOR (FRI)

For Gar-Ber Filter Assemblies

✅ Features

• ✅ 30" Hg vacuum gauge for Gar-Ber filters only

• ✅ Installs directly on top of the filter to indicate clogging

• ✅ High readings signal when to replace the filter cartridge

• ✅ Copper alloy C-shape Bourdon tube

• ✅ Spring-suspended movement for accuracy

• ✅ Easy-to-read color-coded dial

• ✅ 1/8" NPT male connection

• ✅ Works with all Gar-Ber filter models

⚙️ Specifications – 3610 Filter Restriction Indicator

⚠️ Common Symptoms of a Failing 1603 Filter Assembly

• 🔸 Burner misfires or lockouts due to restricted oil flow

• 🔸 Reduced burner efficiency or uneven flame

• 🔸 Visible debris or sludge during filter inspection

• 🔸 High vacuum reading on the 3610 gauge (approaching 20–30" Hg)

• 🔸 Air bubbles in fuel line or filter head

• 🔸 Longer burner start-up times

⚠️ Common Symptoms of a Faulty 3610 Filter Restriction Indicator

• 🔸 Gauge needle stuck at high reading even after filter replacement

• 🔸 Needle doesn’t move during burner operation

• 🔸 Cracked lens or dial housing

• 🔸 Inaccurate readings causing premature filter changes

🛒 Shopping Tips

• 💡 Always confirm compatibility with Gar-Ber style spin-on filters (Generalaire 1600 or 1603).

• 💡 Replace the filter element at least once per heating season—or when the FRI gauge shows high restriction.

• 💡 The included BIOGasket allows safe use with biofuel blends (B20–B100).

• 💡 If you already have a mounting bracket, consider the 1600 model (without gauge and bracket).

• 💡 Avoid over-tightening the FRI gauge when threading into the filter top.

❓ FAQ (Frequently Asked Questions)

Q: Can I use the 1603 with standard heating oil?
A: Yes, it works perfectly with #2 heating oil and biofuel blends up to B100.

Q: How do I know when to replace the filter cartridge?
A: When the 3610 gauge shows a high vacuum reading (near 30" Hg), it indicates a clogged filter.

Q: Does this come with a mounting bracket?
A: Yes, the 1603 includes a galvanized mounting bracket and filter restriction indicator.

Q: Is the 3610 gauge reusable?
A: Yes, it can be reused on new filters as long as it remains accurate and undamaged.

Q: Can I mount the filter vertically or horizontally?
A: For best performance and easy gauge visibility, mount the filter vertically
