Generalaire 1605 11BV-MK, 11BVMK Complete Gar-Ber Commercial Spin-On Fuel Filter
1605
Kit # 11BV-MK
Includes a BIOGasket for biofuel blends to B100
Light Commercial Oil Filter With Attaching Bracket and Filter Restriction Indicator Gauge
Specifications
- Maximum firing rate: 35 GPH
- Micron removal: 35 mic
- Filtering area: 700 sq. in.
- Working pressure: 15 psi
- Max working pressure 40 psi
- max flow rate 90 GPH
- Melting Point 1065 F ( 574 C)
- Burning Equipment NO.2 Oil or Lighter
- For Indoor Use Only
- Bio gasket for biofuel blends up to B100
- Inlet/outlet: 3/8 in. NPT
- Aluminum head with 1/8 in. vacuum bleed port
- Epoxy - coated disposable spin-on cartridge filter
- Galvanized filter bracket included
- Filter restriction indicator
- Bracket Up Position: H-10¾"
- Bracket Down Position: H-10½" W-3¾"
- This model comes with the Model #M Commercial Spin-On Filter cartridge

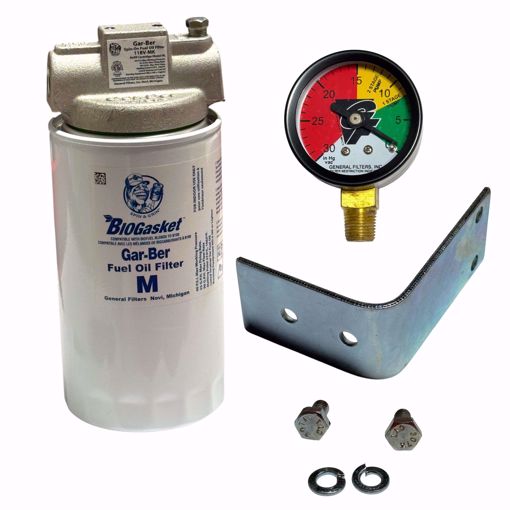

Machined Aluminum Head, 1/8" npt Vacuum/Bleed Port, #M Epoxy-Coated Disposable Spin-On Filter, Filter Restriction Indicator and Galvanized Attaching Bracket.
Replaces Westwood F100-7
Includes Part Numbers In The Kit
- 3610 Filter Restrictor Indicator
- 3620 Angle Filter Mounting Bracket
