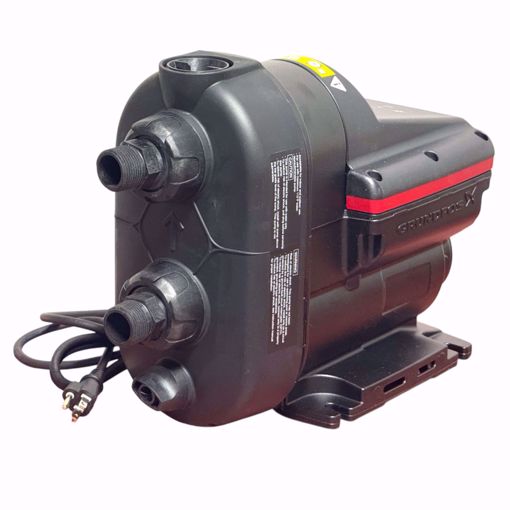

93013251 GRUNDFOS SCALA2 3-45 115V 60HZ NEMA 5-15 PLUG

93013251 GRUNDFOS SCALA2 3-45 115V 60HZ NEMA 5-15 PLUG Product name: SCALA2 3-45 - 115V - 60Hz - 1 Phase - Pumped Liquid Water - Flow Rate 13.2 GPM - Max Flow 20.3 US GPM - Rated Head 88.59 FT - Max Head 148 FT - Min Head 53 FT - Black Color Body - Pump Housing Composite - Pump Type Booster Pump - Max Operating Pressure 145.04 PSI - Max Permissible Inlet Pressure 87 PSI - Ambient Temp Range 32 to 113 F - 3/5 HP - 4.9 Amps - Cord Length 6.5 Ft - Inlet/Outlet Connection Threaded Male - Size of suction/outlet port 1" - 550 Watts - NEMA 5-15 - Max Pump Speed 5200 RPM Features - Perfect water pressure: Intelligent pump control adjusts operation automatically - Low noise: 44 dB(A) in typical use - Easy selection: One variant for all residential boosting needs - Easy installation: Compact, all-in-one solution, plug-and-pump - Easy to operate: User-friendly control panel - Reliable operation: Dry-running protection, anti-cycling - Long lifetime: Quality-tested to perfection, maintenance-free - Highly efficient with ECM motor - Self priming and suitable for both indoor and outdoor applications - Self-priming pump ensures stable operation, even when the pump is not completely filled with water. - SCALA2 is the perfect choice for residential buildings with up to 3 floors and 8 taps Suitable for - Residential groundwater intake - Residential rainwater harvesting - Residential water pressure boosting SCALA2 can be installed in three easy steps: - Connect the pipes. - Prime the pump. - Plug the pump into the power outlet, and the pump starts. Grundfos SCALA2 has all the components necessary to ensure comfortable pressure: - intelligent controller - integrated speed-controlled drive - integrated tank - integrated sensors - integrated inlet and outlet valves. APPLICATIONS • Boosting from mains: increases the water pressure delivered by city mains • Boosting from tanks: increases water pressure from roof tanks, break tanks and ground tanks, including rainwater tanks • Boosting from wells: pumps water from a depth of up to 26 feet (8 meters) • Indoor and outdoor installation: X4D IP Rating This item replaces: 98562818, 96860172, 96860195 Grundfos SCALA2 is a fully integrated, self-priming, compact waterworks for pressure boosting in domestic applications. SCALA2 incorporates integrated speed control, enabling perfect pressure at the taps, meaning that the pump performance automatically adjusts according to demand. SCALA2 features self-priming which enables the pump to extract water from a level below the pump. Once adequately primed, the pump is capable of effortlessly lifting water from depths down to 8 meters in less than 5 minutes. The pump moreover guarantees a dependable water supply in situations where there is a risk of dry running and leakages in the inlet hose or pipes, thereby enhancing the overall reliability of the system. In the event of dry running, water shortage, extreme temperature or if the pump becomes blocked due to seizure or overload, the pump automatically shuts down, preventing damage or motor burnout. The pump features an automatic reset function. In case of dry running or similar alarm, the pump stops. The pump attempts to restart every 5 minutes for a total of 8 times. After the 8th attempt, a new restart attempt occurs every 24 hours. The automatic reset function can be deactivated. Thanks to its hydraulic design, permanent-magnet motor and water cooling, the pump is extremely low-noise, 44 dB(A) in typical use, which makes it suitable for indoor as well as outdoor use. Maximum noise level at full load is 53 dB(A). The built-in pressure tank reduces the number of starts and stops in case of leakages in the pipe system, thereby prolonging the lifetime of the pump.
