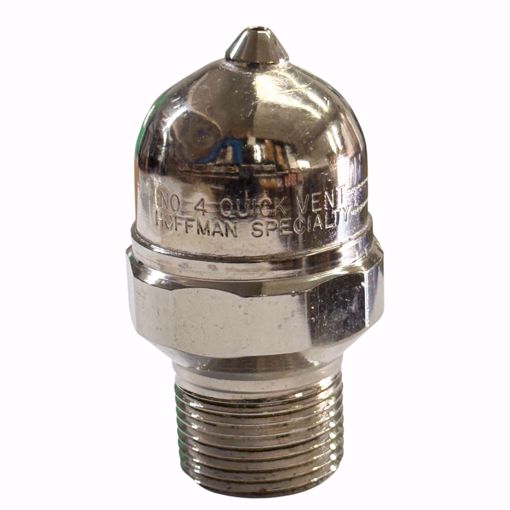

401416 HOFFMAN #4 STEAM THERMOSTATIC AIR VENT 3/4M - 1/2F

Manufacturer: Hoffman

HOFFMAN #4 STEAM THERMOSTATIC AIR VENT 3/4M - 1/2F 401416 Model # 4 4 THRMO STM VENT 1/2f 3/4m 25# Thermostatic air vent For steam systems and process equipment Operates on temperature change only; does not close against water Must be installed 6-10″ (150-250mm) above horizontal return and 18″ (450mm) above the boiler water line 1/2 NPT female and 3/4 NPT male straight shank Maximum operating pressure 25 psig (1.7 bar) Maximum pressure 25 psig (1.7 bar)

SKU: HOFFMAN:401416

Product Availability: 3

$80.44

This product must be purchased in increments of 1

Qty:

i h

HOFFMAN #4 STEAM THERMOSTATIC AIR VENT 3/4M - 1/2F
401416
Model # 4
4 THRMO STM VENT 1/2f 3/4m 25#
Thermostatic air vent
For steam systems and process equipment
Operates on temperature change only; does not close against water
Must be installed 6-10″ (150-250mm) above horizontal return and 18″ (450mm) above the boiler water line
1/2 NPT female and 3/4 NPT male straight shank
Maximum operating pressure 25 psig (1.7 bar)
Maximum pressure 25 psig (1.7 bar)

Products specifications

Manufacturer	Hoffman
