MINIPEEPER UV SENSOR 1MTG

Manufacturer: Honeywell

C7035A1023 HONEYWELL MINIPEEPER UV SENSOR 1"MTG - Temp Range 0 to 250 F - Nema Rating 3 & 4 - Max Pressure Rating 5 PSI (34.5 kPa) - MOUNTING: Collar with standard 1 in. internal threads for mounting on a 1 in. sighting pipe WIRING CONNECTIONS: - Two, 6 ftt1.83 m], color-coded, NEC Class - 1 lead wires. (One model is available with lead wires rated for 400 F [204.4 C], and one model is available with 12 ft [3.66 m] lead wires.) - Rear of detector has 112-14 NPSM internal threads for connecting to a conduit Features & Benefits: - Rugged, compact, with encapsulated sensing tube for maximum protection - Quick and easy installation on standard sight pipe - Meets outdoor rain tight requirements of Underwriters Laboratories Inc., NEMA 4 and NEMA 4X. - Wires in parallel for difficult sighting applications. - Seals against pressures as high as 5 psi (34.5 kPa) when correctly installed. - Field-replaceable ultraviolet sensing tube - C7027A, C7035A, and C7044A Flame Detectors are used with RA890G devices or R7249A, R7290A, R7749B and R7849A, B Amplifiers and the appropriate Honeywell controls. - C7035A has an integral collar threaded (internal 1-11-1/2 NPSM) for mounting on a one-inch sight pipe. - C7035A housing meets Underwriters Laboratories Inc. requirements for rain tightness and complies with NEMA enclosure standards, types 4 and 4X. - Properly installed, the C7027A, C7035A and C7927 are pressure rated for 5 psi. - C7035A ultraviolet radiation sensor tube is field replaceable. - Two C7027A, C7035A or C7044A Flame Detectors can be wired in parallel for difficult flame sighting installations. (C7927cannot be used in parallel.) THE C7027A, C7035A, AND C7044A DETECT ULTRAVIOLET RADIATION EMITTED FROM ALL FLAMES. THEY ARE USED WITH FLAME SAFEGUARD CONTROLS TO PROVIDE SUPERVISION FOR GAS, OIL, OR COMBINATION GAS-OIL BURNERS Compact analogue UV flame sensor to detect ultraviolet radiations emitted by combustion flames. Used with Honeywell burner controls to provide flame supervision for commercial and industrial burner applications.

SKU: HONEYWELL:C7035A1023

Product Availability: 1

$510.39

This product must be purchased in increments of 1

Qty:

i h

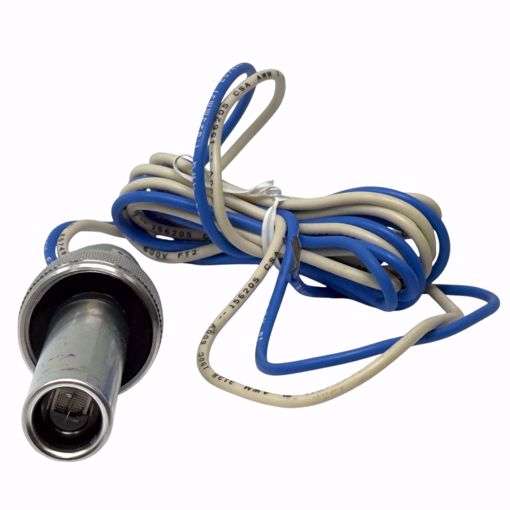

C7035A1023 HONEYWELL MINIPEEPER UV SENSOR 1"MTG

- Temp Range 0 to 250 F
- Nema Rating 3 & 4
- Max Pressure Rating 5 PSI (34.5 kPa)
- MOUNTING: Collar with standard 1 in. internal threads for mounting on a 1 in. sighting pipe

WIRING CONNECTIONS:
- Two, 6 ftt1.83 m], color-coded, NEC Class
- 1 lead wires. (One model is available with lead wires rated for 400 F [204.4 C], and one model is available with 12 ft [3.66 m] lead wires.)
- Rear of detector has 112-14 NPSM internal threads for connecting to a conduit

Features & Benefits:
- Rugged, compact, with encapsulated sensing tube for maximum protection
- Quick and easy installation on standard sight pipe
- Meets outdoor rain tight requirements of Underwriters Laboratories Inc., NEMA 4 and NEMA 4X.
- Wires in parallel for difficult sighting applications.
- Seals against pressures as high as 5 psi (34.5 kPa) when correctly installed.
- Field-replaceable ultraviolet sensing tube

- C7027A, C7035A, and C7044A Flame Detectors are used with RA890G devices or R7249A, R7290A, R7749B and R7849A, B Amplifiers and the appropriate Honeywell controls.

- C7035A has an integral collar threaded (internal 1-11-1/2 NPSM) for mounting on a one-inch sight pipe.

- C7035A housing meets Underwriters Laboratories Inc. requirements for rain tightness and complies with NEMA enclosure standards, types 4 and 4X.

- Properly installed, the C7027A, C7035A and C7927 are pressure rated for 5 psi.

- C7035A ultraviolet radiation sensor tube is field replaceable.

- Two C7027A, C7035A or C7044A Flame Detectors can be wired in parallel for difficult flame sighting installations. (C7927cannot be used in parallel.)

THE C7027A, C7035A, AND C7044A DETECT ULTRAVIOLET RADIATION EMITTED FROM ALL FLAMES. THEY ARE USED WITH FLAME SAFEGUARD CONTROLS TO PROVIDE SUPERVISION FOR GAS, OIL, OR COMBINATION GAS-OIL BURNERS

Compact analogue UV flame sensor to detect ultraviolet radiations emitted by combustion flames. Used with Honeywell burner controls to provide flame supervision for commercial and industrial burner applications.

Products specifications

Manufacturer	Honeywell
