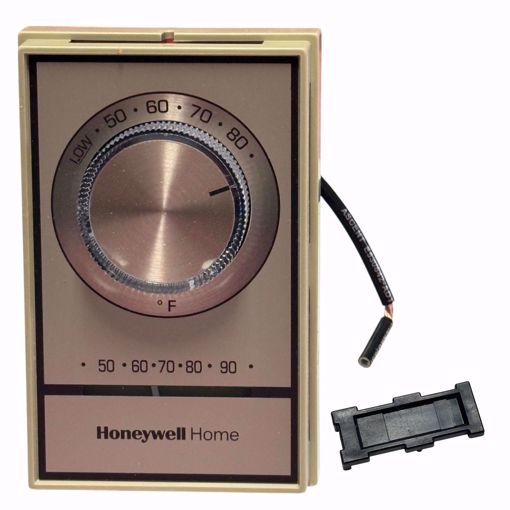

T498A1778 HONEYWELL HOME ELECTRIC HEAT THERMOSTAT SPST BIMETAL SNAP ACTING SWITCH
- Application Electric baseboards, convectors and fan forced heaters (resistive rated loads).
- Includes Range stops, locking cover and extra knob decal for recalibration
- Mounting Vertical
- Electrical Ratings Non-inductive resistive 22A at 120/208/240 Vac. 19A at 277 Vac
- 60Hz
- Stages 1 Heat
- Electrical Connections 6 inch (150 mm) black and red lead wires
- Supply Voltage 120 Vac; 208 Vac; 240 Vac; 277 Vac
- Ambient Temperature Range (F) 40 F to 80 F
- Color Brush gold finish
- Sensor Element Bimetal
- Accuracy (F)1 F
- Differential Temperature (F) 3 F
- Switching Action SPST
- Setting Temperature Range (F) 40 F to 80 F
- Power Method Hardwired
- User Interface Mechanical
Features
- Easy to install; color-coded leads.
- Include thermometer. Include long-lasting Micro Switch mechanism; makes on temperature fall.
- Rugged, plastic mounting base.
- Mount on standard 2 x 4 in. outlet box or 4 x 4 in. junction box.
- Select models include extra knob decal for recalibration, if necessary.
Electric Heat Thermostats provide line voltage control of electric heating systems.
