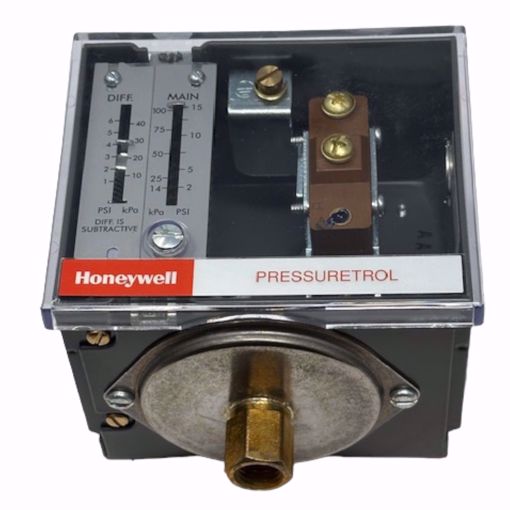

PRESSURETROL2-15#OPENLOSNAP

- Application: Provide control of steam, air, non-combustible gases or non-corrosive fluids - Operating Range: 1 to 8 psi - Mounting:1/4 in. NPT internal thread or surface mount through back of case - Switch Operation: Auto recycle - Switching Action: Snap switch makes R-W on pressure rise - Sensor Element: Brass bellows - Pipe Connections, Main or High Pressure:1/4" NPT internal thread - Switch Contact Ratings (120v):8.0 AFL, 48.0 ALR, 10.0 A resistive - Switch Contact Ratings (240v): 5.1 AFL, 30.6 ALR, 5.0 A resistive - Maximum Sustained Operating Pressure: 25 psi - Pressure Differential (psi): 2 to 6 psi - Differential Type: Subtractive - Temperature Range: -35 to 150 F - Electrical Connections: Screw terminals - Maximum PSI 15 PSI FEATURES • Models available in a series of control ranges, and pressure scales in kPa and psi. • All models automatically reset and have an adjustable differential. • Models have snap switch to open or close a circuit on a pressure rise. • Case has a clear plastic cover so setpoints can be observed. • 1/4 inch—18 NPT connection for pipe on diaphragm assembly. • Ground screw terminal. Use with steam, air, noncombustible gases, or fluids non-corrosive to pressure sensing element. L404F: • Controllers may be used with steam, air, or noncombustible gases, or fluids noncorrosive to the pressure sensing element. L404F PressureTrol Controllers provide operating control with automatic limit protection for pressure systems of up to 2070 kPa, or 300 psi.
